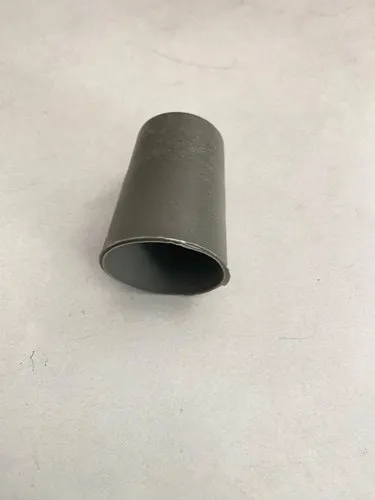

PVC Cones for Wall Form Tile - Black

SKU: PVCCON-3925-B

Cone in wall formwork is designed to be easily removable post formwork striking, and it is used to generate space for the tie firmly joining both sides of the formwork during concrete setting.

₹ 4.58

Product Specifications

Usage/Application: Wall form Tie

Material: PVC

Size: FC 1 Top ID 12 mm, Bottom 28 mm Height: 35 mm

HSN CODE: 7308

Colour: Grey/Black

Ready Made Lintel:PVC Cones for Wall Form Tile made out of 3mm thick PVC, perforated as per Arpitha

Uses/Application: Industrial

Country of Origin: Made in India

Purpose

Main purpose of the product is to used to provide space for tie bars firmly linking the 2 sides of the formwork during concrete placing.

Advantages

Providing and fixing of PVC Umbrella / Thimble shape Cones FC 1 , FC 2 / TC 1 as per specification.
Plastic cones in wall formwork are used to provide space for tie bars firmly linking the 2 sides of the formwork during concrete placing.
PVC cones are designed to be easily removable after formwork striking.

Availability & Specification

Black Colour FC 1 Top ID 12 mm, Bottom 28 mm Height: 35 mm

Tie Cone Installation Method

Select the tie cones.
Cut a PVC tube to the needed length and diameter.
Fix the tie rod on either side to tighten it.
Pour concrete into the mold.
After de-shuttering, remove the tie cones.
Leave the PVC pipe inside the member and cover it with plaster.
