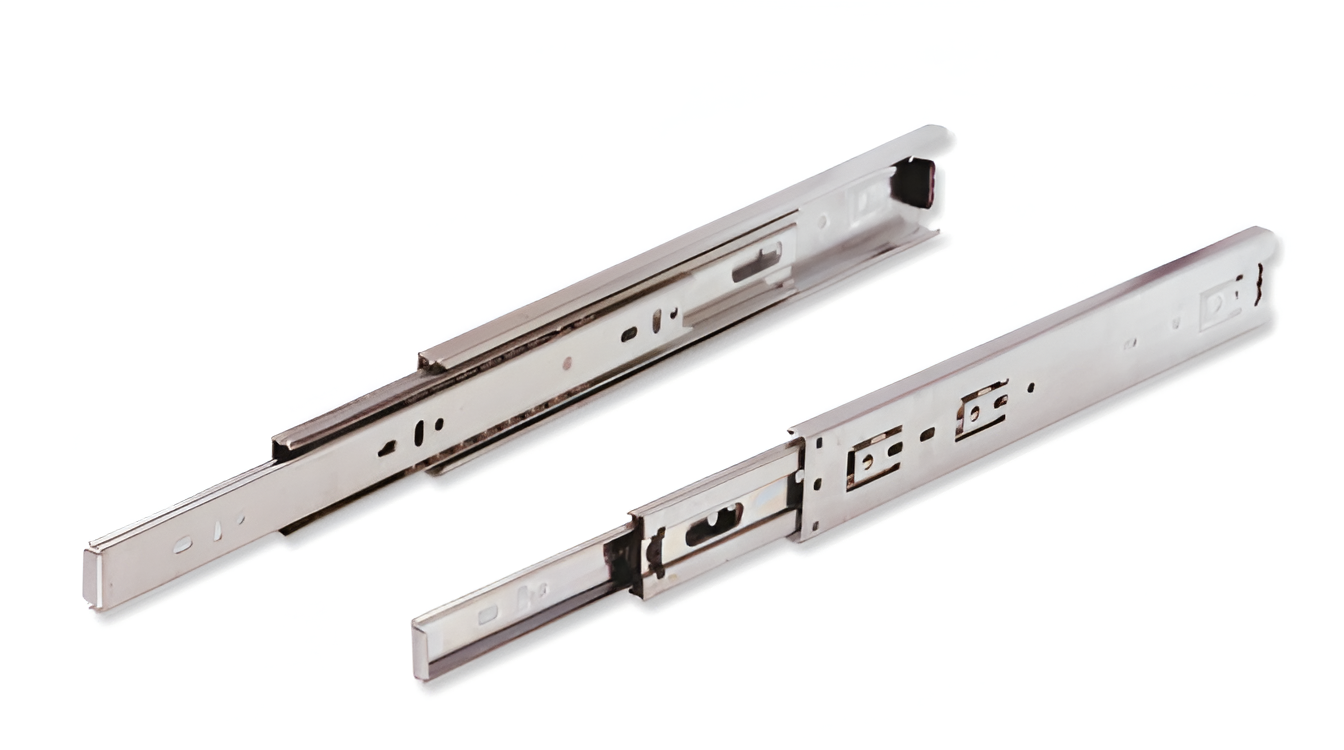

Ebco, STDS55-I-45, Sleek Telescopic Drawer Slides (I) -45, Primary Series, Drawer Slides and Hinges, Zinc Plated White/Zinc Plated Black - 550mm

Product Description

Brand	Ebco
Condition	New
Model	Sleek Telescopic Drawer Slides (I) -45
Code	STDS55-I-45
Length	550 mm

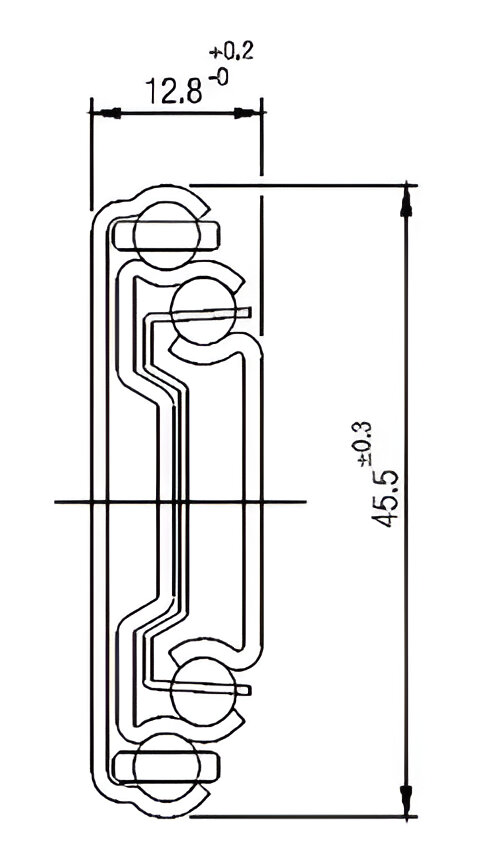

Gap and Side	12.7 to 13mm
Max Load	45 Kgs
Finish	Zinc Plated White

Features:

Fitting Instructions

To install sleek telescopic drawer slide 12.7 to 13.0mm gap per side is required between cabinet and drawer.

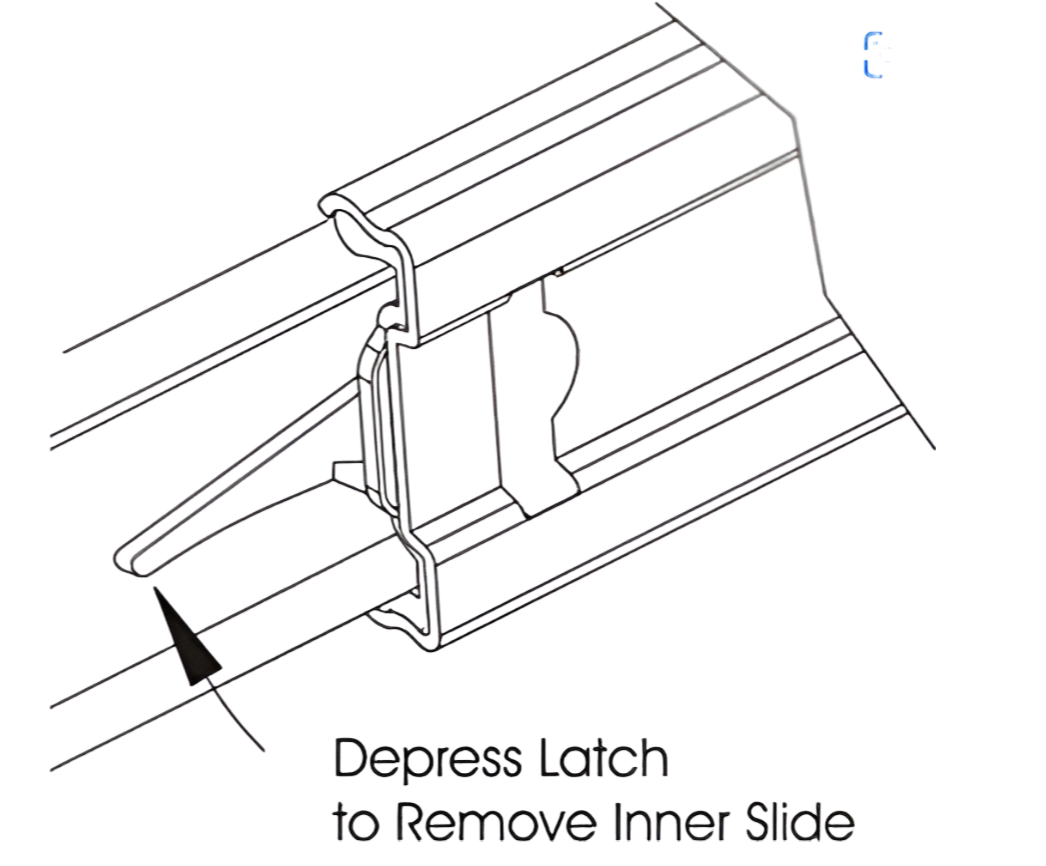

Depress latch and remove the inner slide.
Fit outer (fixed) slide onto the inside of the cabinet, access to holes can be got through slots in intermediate slide.
Slides should be fitted parallel and screws tightened fully to avoid gaps.
Fit inner slide on to the outside of the drawer.
Now slide the drawer with inner slide fitted on to the intermdediate slides on the cabinet till the latch engage automatically.

Caution- For efficiency and durability.
