Ebco, STDS30-I-35, Sleek Telescopic Drawer Slides (I) -35, Primary Series, Drawer Slides and Hinges, Zinc Plated White/Zinc Plated Black - 300mm

SKU: STDS30-I-35
Manufacturer: EBCO
Sleek Telescopic Drawer Slides (I)-35 are designed to provide smooth, durable, and space-saving sliding action for drawers, ensuring easy access and reliable performance in various furniture and cabinetry applications.
₹ 338.00

Product Description


Brand
Ebco
Condition
New
Model
Sleek Telescopic Drawer Slides (I) -35
Code
STDS30-I-35
Length
300 mm

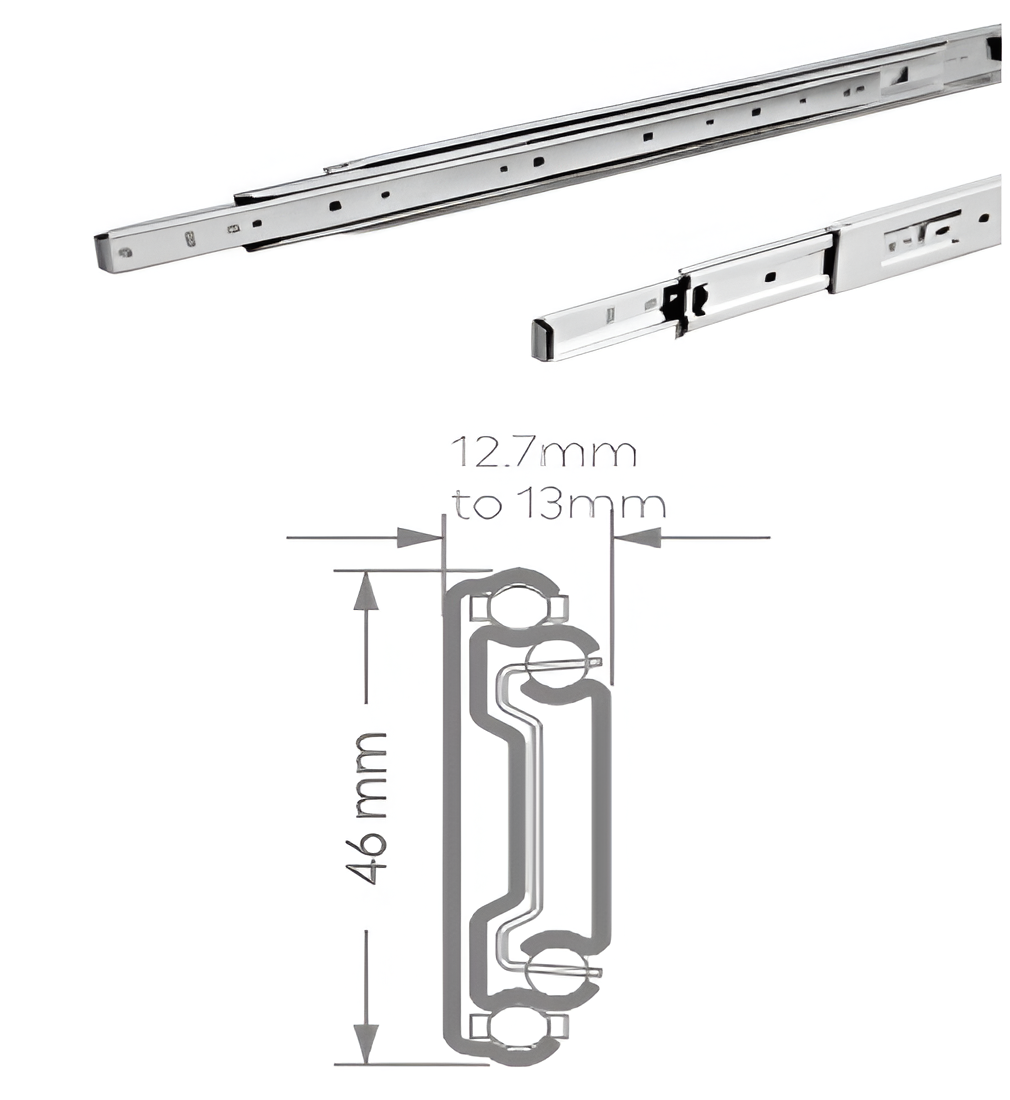

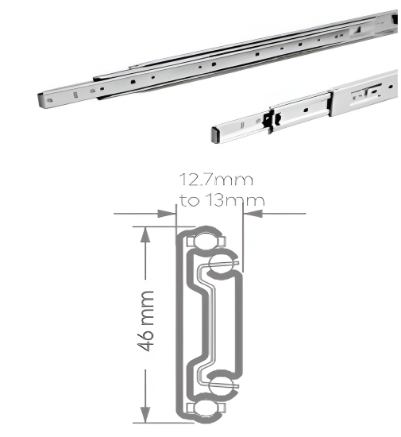

Gap and Side
12.7 to 13mm
Max Load
30 Kgs
Finish
Zinc Plated White/Zinc Plated Black


Features:
  • Precision telescopic slides with full extension of drawer

  • Direct fitting from front

  • Removable drawer with Latch

  • Load Capacity: 30 Kgs





Fitting Instructions
  • To install sleek telescopic drawer slide 12.7 to 13.0mm gap per side is required between cabinet and drawer.
  • Depress latch and remove the inner slide.
  • Fit outer (fixed) slide onto the inside of the cabinet, access to holes can be got through slots in intermediate slide.
  • Slides should be fitted parallel and screws tightened fully to avoid gaps.
  • Fit inner slide on to the outside of the drawer.
  • Now slide the drawer with inner slide fitted on to the intermdediate slides on the cabinet till the latch engage automatically.

Caution- For efficiency and durability.
  • Strictly maintain 12.7 to 13.0mm side gap.
  • Fit slides parallel and at equal heights.
  • Do not apply paint or polish.
  • Do not let saw dust enter into the slides.
