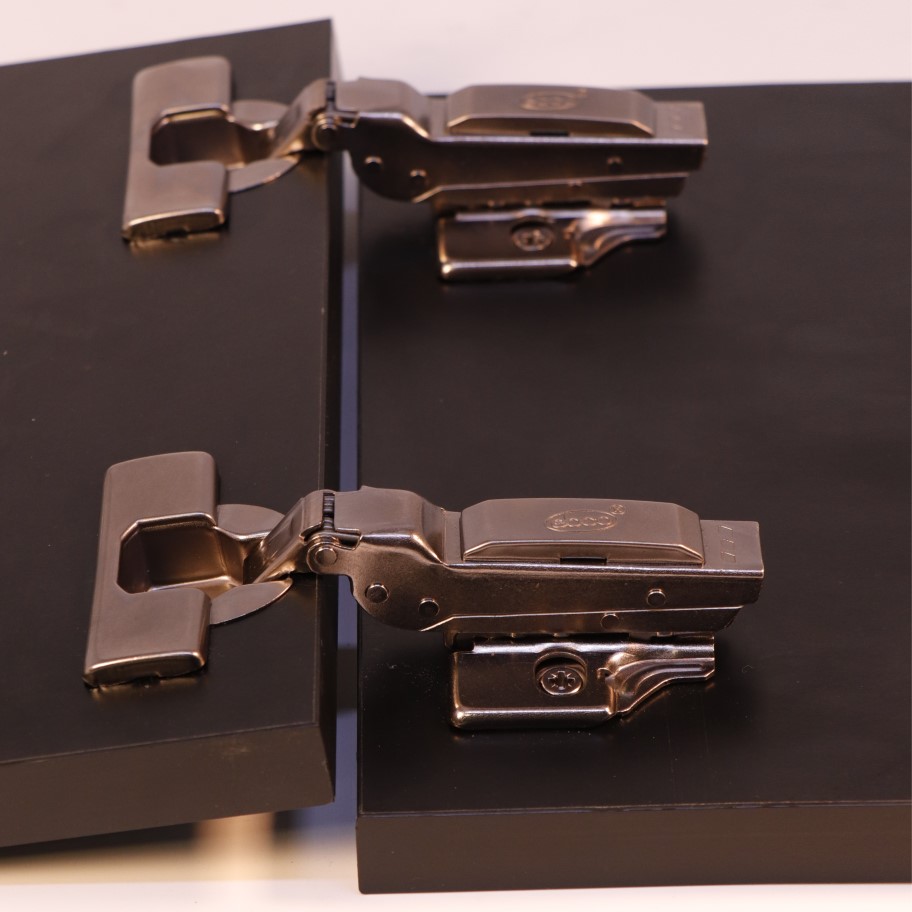

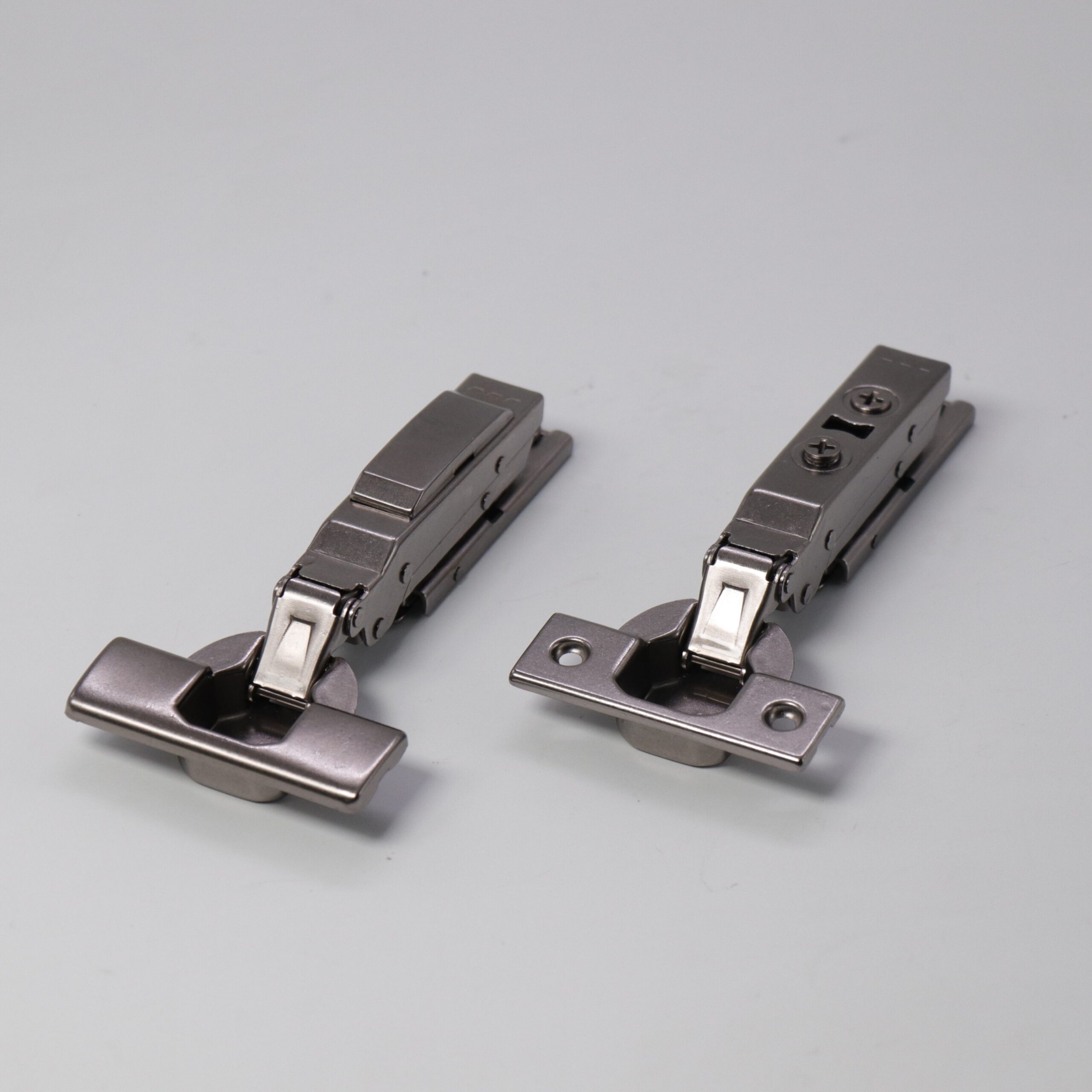

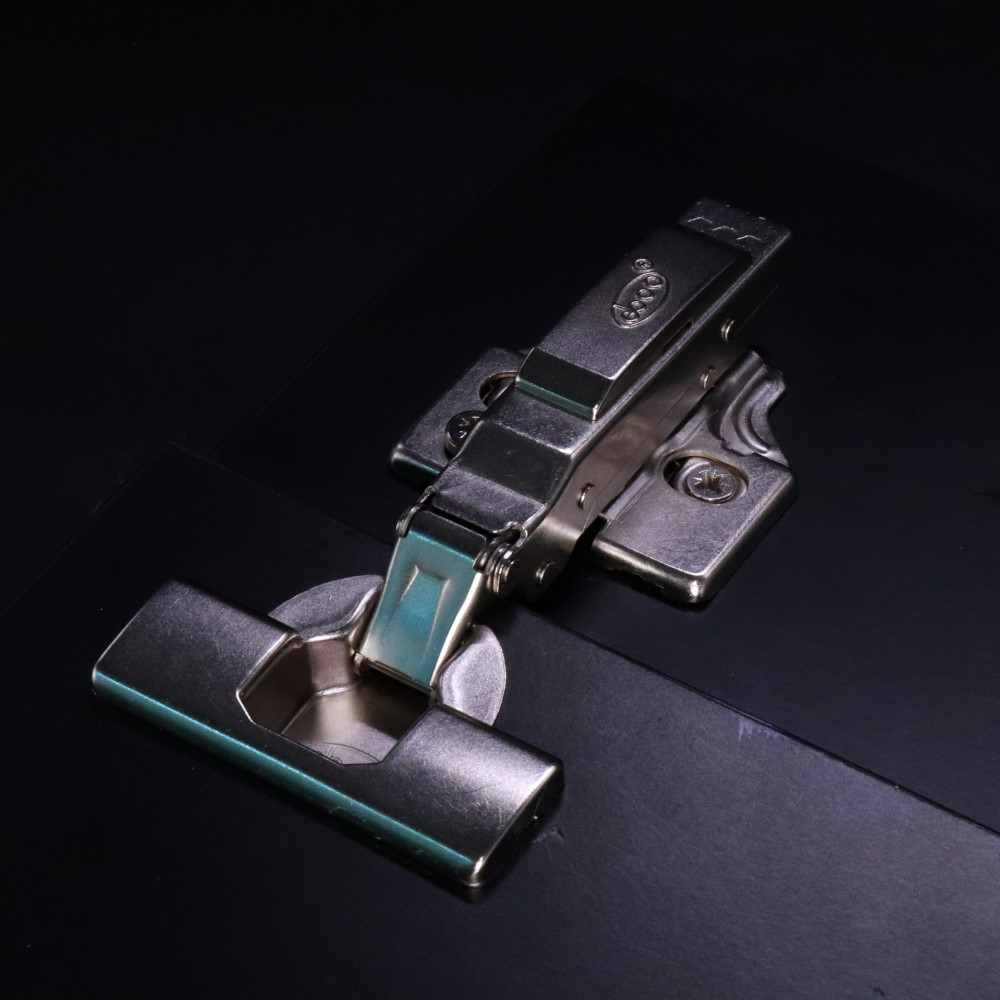

Ebco, HSM1-3DM-GM, Hinge Slow Motion - 3D Max Full Overlay, Gun Metal - Door Thickness 18-27mm, 3D Max

SKU: HSM1-3DM-GM

Manufacturer: EBCO

The purpose of the HSM1-3DM-GM, Hinge Slow Motion - 3D Max Full Overlay is to showcase the detailed, slow-motion animation of a hinge mechanism using 3D Max, typically for mechanical analysis, product visualization, or educational purposes.

₹ 326.00

Product Description

Brand	Ebco
Condition	New
Model	Hinge Slow Motion - 3D Max Full Overlay
Code	HSM1-3DM-GM
Length	Door Thickness 18-27mm, 3D Max
Max Load	9 Kgs
Finish	Gun Metal
Set/Pcs	Set

Features:

For shutter thickness: 18 - 27mm
Covers carcass up to 22mm
Also available with linear mounting plate
This clip on hinge has three-way shutter adjustment
Finish: Nickel Plated

Caution- For efficiency and durability

Do not apply paint or polish.
Hinges must be parallel.
The hinge must not be hammered.
