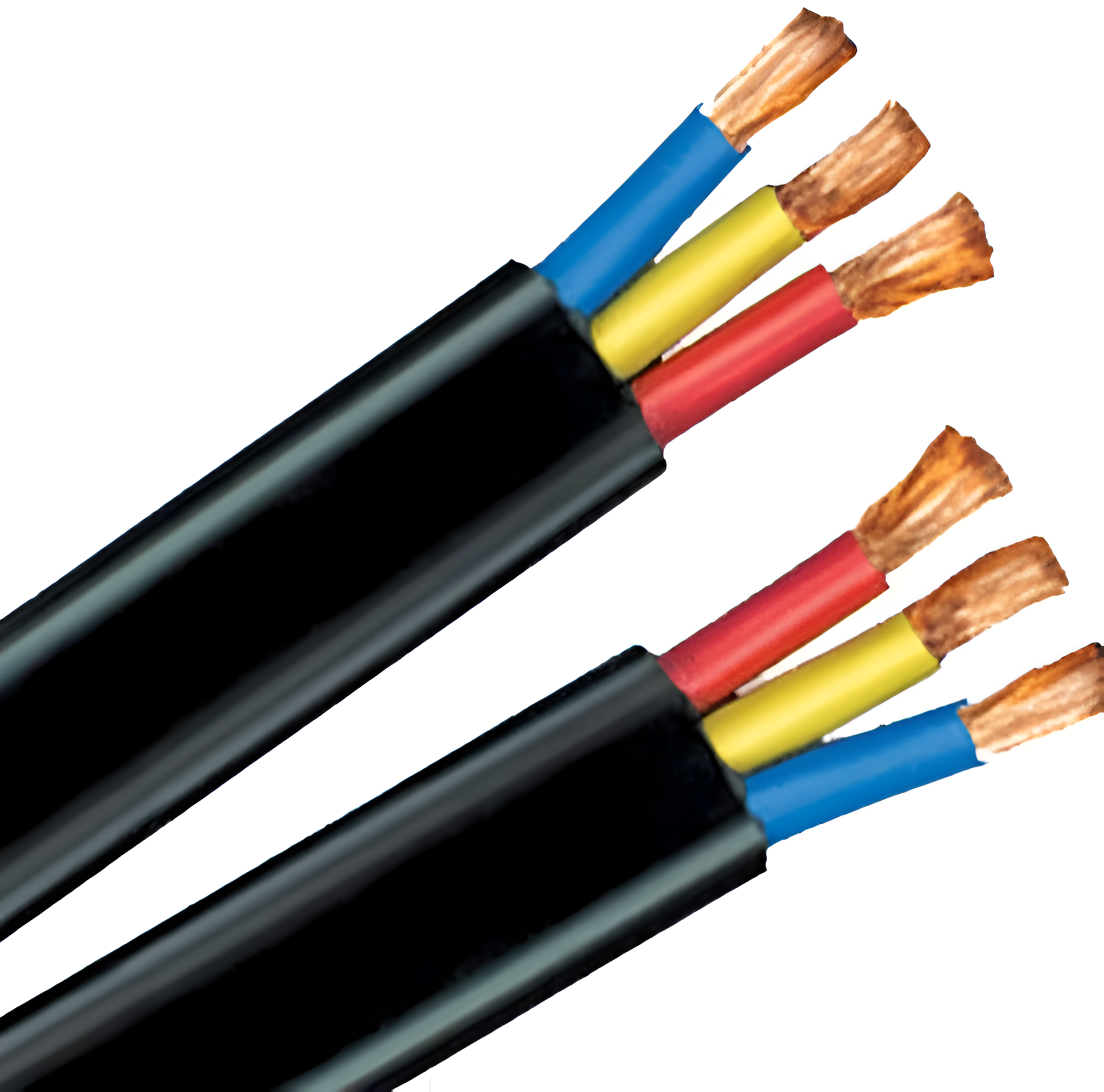

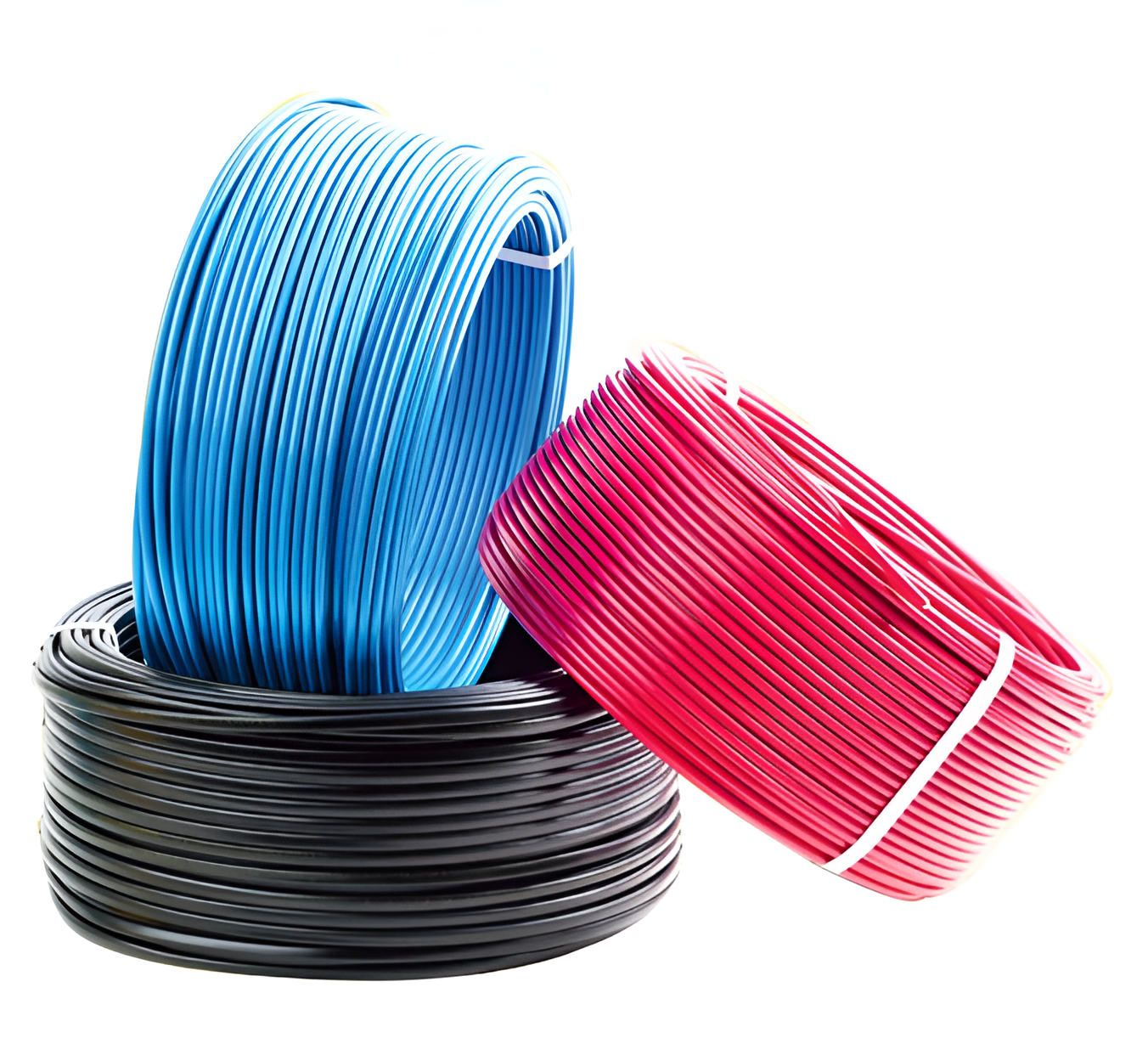

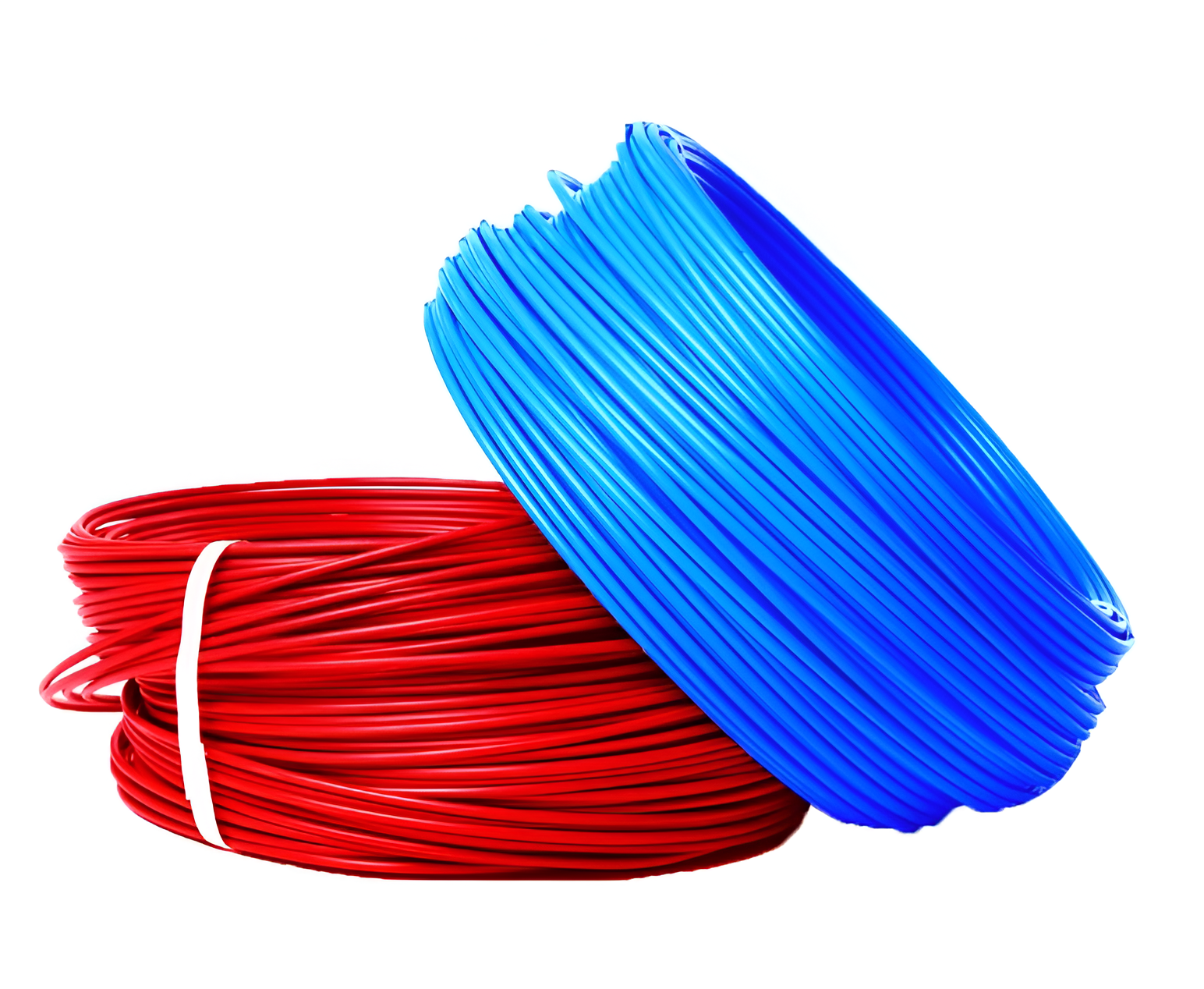

Vasavi PVC Cable Multi Strand Single Core Unsheathed Flexible Cables With Copper Conductor-1.5 Sqmm

SKU: PCVSVI-CB-1.5

Manufacturer: Vasavi Cables

PVC (Polyvinyl Chloride) cables are widely used in electrical and communication applications. PVC cables provide excellent electrical insulation and protection against moisture and damage, making them flexible and cost-effective for various residential, commercial, and industrial applications. They are also often flame-retardant, enhancing safety in electrical installations.

Please click below to request for quote.

Product Specifications

General Information

Standard Colour: Black, Red, Blue, Yellow and Green (For Earthing)

Material: PVC

Brand: Vasavi

Nominal area of copper Conductor: 1.5 Sq.mm

Number/Nominal Diameter of strands: 22/.3*mm

Thickness of insulation (Nominal): 0.8mm

Approximate Overall Diameter of wire: 3.1mm

Resistance (Max.) per Km. @20°C: 12.10 Ohms

Country of Origin: Made in India

Indoor/Outdoor: Indoor, Outdoor

Project Type: Commercial, Residential

Current carrying capacity 2 wires, single phase

In conduit/ Trunking: 13 Amps

Unenclosed-clipped directly to a surface or on cable tray Amps: 16 Amps

Specification

Supplied in 90 meter lengths in attractive carton
BIS License No. CM/L-6054760
*As per conductor Class 2 of IS 8130 : 1984
**As per conductor Class 5 of IS 8130 : 1984

Type

Type: Cable Wires
