Steel Lintels Brackets, 8” / 200 mm

SKU: SLB-7308-6”/150
Manufacturer: Arpitha Exports
A quick and easy installation, Suitable for a wide range of wall thicknesses and door and window opening types. Material resistant to corrosion, Lightweight Simple to manage
₹ 410.00



Product Specifications


Construction
Galvanized Iron
6” / 150 mm
7308
Lintel made out of Galvanized Iron, perforated as per Arpitha
Industrial
Made in India



Purpose

Main purpose of the product is to replace conventional RCC lintels for ease of installation, time, and cost saving during construction.



Advantages

  • Shuttering not required.
  • Reinforcement not required.
  • Water curing not required.
  • Very simple installation; requires a few minutes for installation and brickwork construction above the lintel can be started immediately.
  • Can be used for all types and kinds of door and window openings of various wall thicknesses.



Availability & Specification

Available in various lengths and widths suitable for 100mm, 150mm, and 200mm thick walls and also available in custom-made widths.

6'' inch's / 150 mm





Lintel Installation with Column Support

1. Bracket Installation:

  • Use brackets on both sides if there are columns.
  • No extra support is needed for the length of the lintel.
  • Use 3 mm thick 'L' shaped steel brackets that are 100 mm high and 150 mm long.
  • Brackets should be perforated and powder-coated to prevent rust (60 mm to 80 mm).

2. Brackets Size:

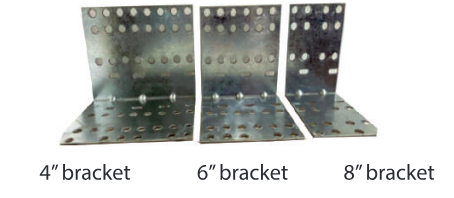

  • Choose from 4”, 6”, or 8” brackets as needed.

3. Threaded Rods:

  • For openings over 1.5 meters, use 8 mm threaded rods with Hilti M8 fasteners to secure the lintel to the roof.
  • Attach the rods to the lintel through holes near the bend.

4. Jack Support:

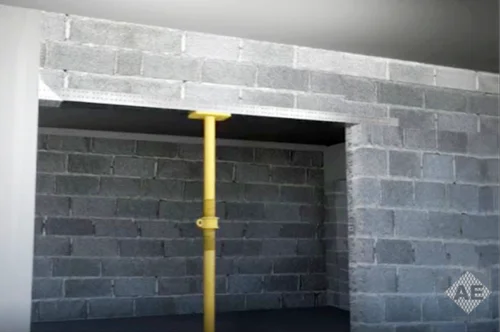

  • Use jack support under the lintel to prevent sagging before starting block work.
  • Do not remove the jack until all work, including water curing, is done.

5. Brick/Block Work:

  • Limit work to 2 rows of bricks or blocks per day.
  • Use GI wall ties and 200 mm GI mesh every second layer to increase strength and reduce vibrations.

6. Applicable Materials:

  • This method works for solid blocks, lightweight blocks, red brick walls, or any type of block or brick wall.

7. Completion Note:

  • Follow all steps to finish the brick/block work before removing the support.

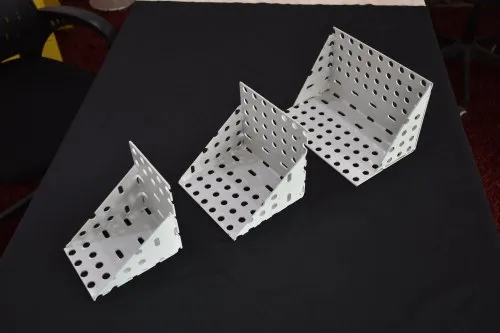

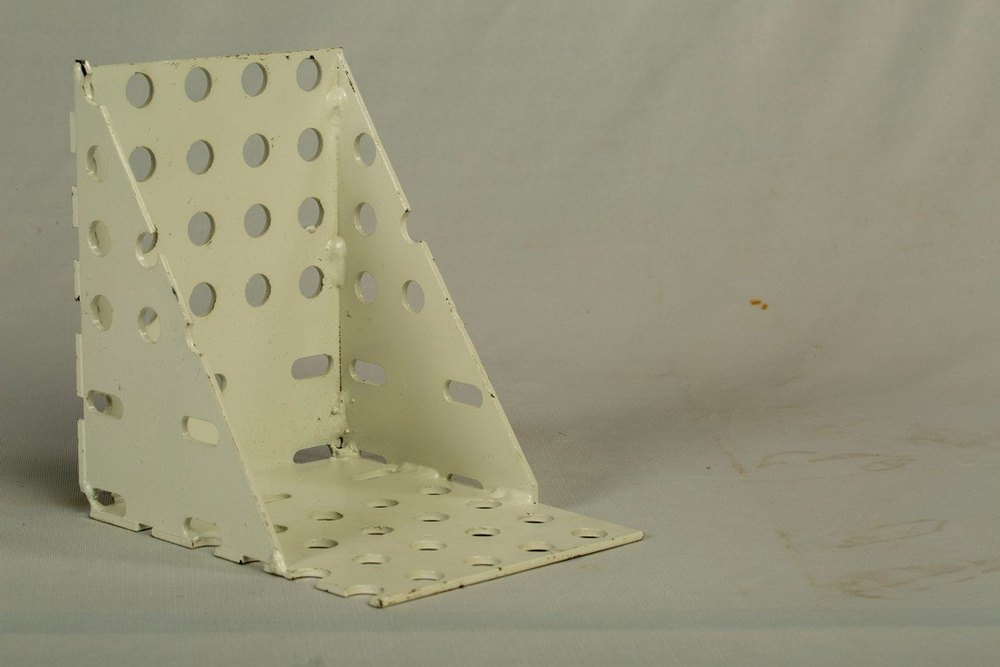

Picture of Steel Lintels Brackets, 8” / 200 mm
