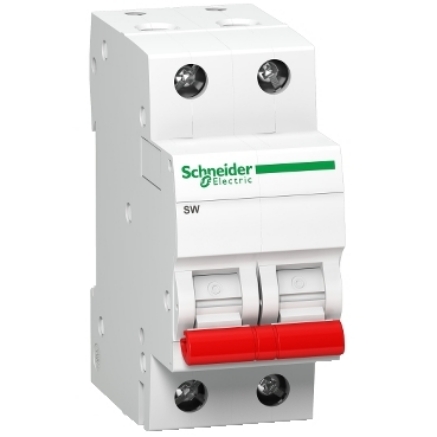

Schneider Electric Pack of 6 Isolator SW 2P 80A 415VAC SKU-AECMCB-A9KS15280BQ

SKU: AECMCB-A9KS15280BQ

Product or component type - Switch disconnector Device short name - SW Device application - Control Poles description - 2P Utilisation category - AC-22A

Old price: ₹ 3,799.00

Price: ₹ 3,730.65

[Ie] rated operational current	80 A at 415 V AC 50/60 Hz
[Ue] rated operational voltage	415 V AC 50/60 Hz
Quantity per set	Set of 6
[Icm] rated short-circuit making capacity	1 kA switch-disconnector alone
[Icw] rated short-time withstand current	960 A during 300 ms
[Ui] rated insulation voltage	500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	4 kV conforming to IEC 60947-3
control type	Toggle
Mounting mode	Fixed
mounting support	DIN rail
Comb busbar and distribution block compatibility	Downstream: biconnect
9 mm pitches	4
height	81 mm
Width	36 mm
Depth	68.5 mm
Net weight	0.24 kg
Colour	White
Mechanical durability	20000 cycles
Electrical durability	10000 cycles
Connections - terminals	Tunnel type terminals (downstream) - 1...35 mm² - rigid Tunnel type terminals (downstream) - 1...25 mm² - flexible Tunnel type terminals (upstream) - 1...35 mm² - rigid Tunnel type terminals (upstream) - 1...25 mm² - flexible
wire stripping length	9 mm
tightening torque	3.5 N.m

Environment
Standards	IEC 60947-3
IP degree of protection	IP20
Pollution degree	2
Tropicalisation	2
Relative humidity	95 % at 55 °C
ambient air temperature for operation	-5…55 °C
Ambient air temperature for storage	-25…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7 cm
Package 1 Width	4 cm
Package 1 Length	8 cm
Package 1 Weight	0.979 kg
