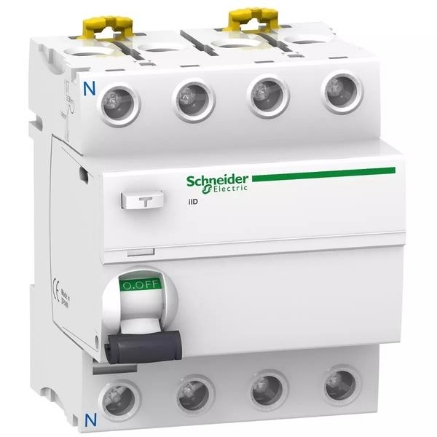

Schneider Electric Pack of 3 RCCB ID K 4P 25A 100mA AC SKU-AECMCB-A9KR12425BQ
*Effective protection against electrocution due to direct and indirect contact and earth leakages *No accidental contact with live parts, thanks to finger-proof IP 20 terminals *Current sensing technology (voltage independent) provides protection even at extra low voltages *Environmental performance of the product
Device location in system Group incomer
Network frequency 50 Hz
[Ue] rated operational voltage 380...415 V AC 50 Hz
Residual current tripping technology Voltage independent
Rated breaking and making capacity Idm 500 A
Im 500 A
Rated conditional short-circuit current GL63: Inc 4.5 kA
K60: Inc 6 kA
[Ui] rated insulation voltage 440 V AC 50 Hz
[Uimp] rated impulse withstand voltage 4 kV
Contact position indicator No
Control type Toggle
Mounting mode Clip-on
Mounting support DIN rail
9 mm pitches 8
Height 81 mm
Width 72 mm
Depth 68 mm
Net weight 0.35 kg
Quantity per set Set of 3
Colour White
Mechanical durability 5000 cycles
Electrical durability AC-1: 4000 cycles
Connections - terminals Biconnect top or bottom 1…35 mm² rigid
Biconnect top or bottom 1…25 mm² flexible
Wire stripping length 14 mm for top or bottom connection
Tightening torque 3.5 N.m top or bottom
