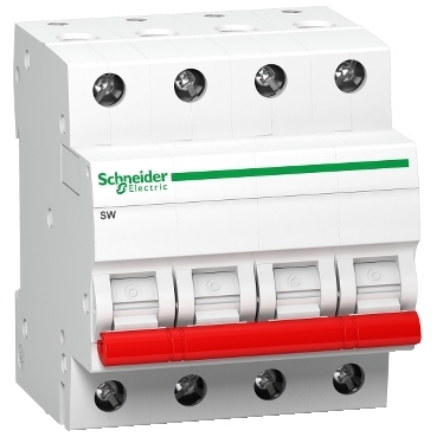

Schneider Electric Pack of 3 Isolator SW 4P 63A 415VAC SKU-AECMCB-A9KS15463BQ

[Ie] rated operational current - 63 A at 415 V AC 50/60 Hz

[Ue] rated operational voltage -  415 V AC 50/60 Hz

Quantity -  per set Set of 3

[Icm] rated short-circuit making capacity 0.9 KA switch-disconnector alone

[Icw] rated short-time withstand current 756 A during 300 ms

[Ui] rated insulation voltage 500 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage 4 KV conforming to IEC 60947-3

Control type Toggle

Mounting mode Fixed

Mounting support DIN rail

Comb busbar and distribution block compatibility Downstream: biconnect

9 mm pitches 8

Height 81 Mm

Width 72 Mm

Depth 74 Mm

Net weight 0.48 Kg

Colour White

Mechanical durability 20000 Cycles

Electrical durability 10000 Cycles

Connections - terminals Tunnel type terminals (downstream) - 1...35 mm² - rigid

 Tunnel type terminals (downstream) - 1...25 mm² - flexible

 Tunnel type terminals (upstream) - 1...35 mm² - rigid

Tunnel type terminals (upstream) - 1...25 mm² - flexible

Wire stripping length 9 Mm

Tightening torque 3.5 N.M
