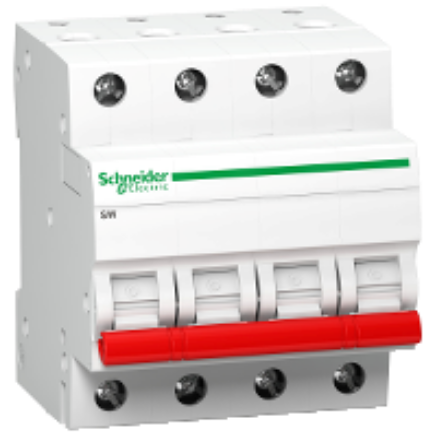

Schneider Electric Pack of 3 Isolator SW 4P 63A 415VAC SKU - AECMCB-A9KS15363BQ
Schneider Electric SKU - AECMCB-A9KS15363BQ Suitable for isolation, guarantees operational safety at the downstream No accidental contact with live parts, thanks to finger-proof IP 20 terminals Utilization category AC-22
Old price: ₹ 3,299.00
₹ 3,138.80
[Ie] rated operational current 63 A at 415 V AC 50/60 Hz
[Ue] rated operational voltage 415 V AC 50/60 Hz
Quantity per set Set of 3
[Icm] rated short-circuit making capacity 0.9 KA switch-disconnector alone
[Icw] rated short-time withstand current 756 A during 300 ms
[Ui] rated insulation voltage 500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 4 KV conforming to IEC 60947-3
Control type Toggle
Mounting mode Fixed
Mounting support DIN rail
Comb busbar and distribution block compatibility Downstream: biconnect
9 mm pitches 8
Height 81 Mm
Width 72 Mm
Depth 74 Mm
Net weight 0.48 Kg
Colour White
Mechanical durability 20000 Cycles
Electrical durability 10000 Cycles
Connections - terminals Tunnel type terminals (downstream) - 1...35 mm² - rigid
Tunnel type terminals (downstream) - 1...25 mm² - flexible
Tunnel type terminals (upstream) - 1...35 mm² - rigid
Tunnel type terminals (upstream) - 1...25 mm² - flexible
Wire stripping length 9 Mm
Tightening torque 3.5 N.M
