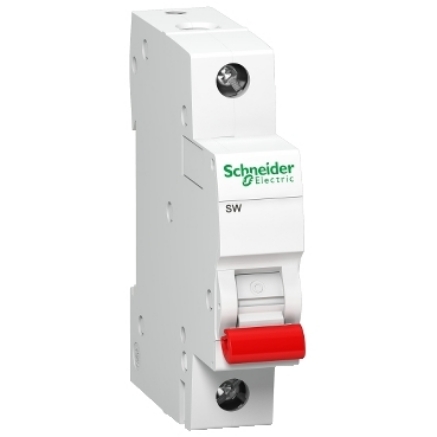

Picture of Schneider Electric Pack of 12 Isolator SW 1P 63A 240VAC SKU-AECMCB-A9KS15163BQ
  • Product Details
  • Specifications
Be the first to review this product

Schneider Electric Pack of 12 Isolator SW 1P 63A 240VAC SKU-AECMCB-A9KS15163BQ

SKU: AECMCB-A9KS15163BQ
Manufacturer: Schneider Electric
*Suitable for isolation, guarantees operational safety at the downstream *No accidental contact with live parts, thanks to finger-proof IP 20 terminals *Utilization category AC-22 *Environmental performance of the product
Old price: ₹ 4,449.00
₹ 4,324.36
Main
RangeActi9
Product nameActi9 SW
Product or component typeSwitch disconnector
Device short nameSW
Device applicationControl
Poles description1P
Utilisation categoryAC-22A
Complementary
[Ie] rated operational current63 A at 240 V AC 50/60 Hz
[Ue] rated operational voltage240 V AC 50/60 Hz
Quantity per setSet of 12
[Icm] rated short-circuit making capacity0.9 kA switch-disconnector alone
[Icw] rated short-time withstand current756 A during 300 ms
[Ui] rated insulation voltage500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage4 kV conforming to IEC 60947-3
control typeToggle
Mounting modeFixed
mounting supportDIN rail
Comb busbar and distribution block compatibilityDownstream: biconnect
9 mm pitches2
height81 mm
Width18 mm
Depth68.5 mm
Net weight0.12 kg
ColourWhite
Mechanical durability20000 cycles
Electrical durability10000 cycles
Connections - terminalsTunnel type terminals (downstream) - 1...35 mm² - rigid
Tunnel type terminals (downstream) - 1...25 mm² - flexible
Tunnel type terminals (upstream) - 1...35 mm² - rigid
Tunnel type terminals (upstream) - 1...25 mm² - flexible
wire stripping length9 mm
tightening torque3.5 N.m
Environment
StandardsIEC 60947-3
IP degree of protectionIP20
Pollution degree2
Tropicalisation2
Relative humidity95 % at 55 °C
ambient air temperature for operation-5…55 °C
Ambient air temperature for storage-25…85 °C
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height8 cm
Package 1 Width9 cm
Package 1 Length24 cm
Package 1 Weight1.023 kg
