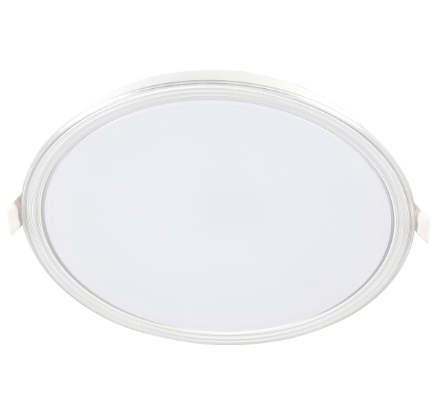

Picture of NIMBUS LED PANEL 10 W RD 3000 K 10 W Round Recess 3000 K
  • Product Details
  • Specifications
Be the first to review this product

NIMBUS LED PANEL 10 W RD 3000 K 10 W Round Recess 3000 K

SKU: HAW-LED24
Manufacturer: Havells
NIMBUS LED PANEL 10 W RD 3000 K 10 W Round Recess 3000 K
Old price: ₹ 850.00
₹ 414.99

TECHNICAL SPECIFICATION

BASIC DETAILS
Suitable forLiving room, Bedrooms, Kitchens
Mounting typeFall Ceiling Mounted
Shape typeRound
POWER FEATURES
Wattage10 W
Rated input voltage230 V
Operating temperature-10 °C to +35 °C
Power factor≥ 0.90
Rated Input Current0.060 A
Starting Voltage160 V
THD≤ 33
DIMENSIONS AND WEIGHT
Packaging dimensions LxWxH (cm)15.2 cm x 4.3 cm x 13.3 cm
Cut out dimensions10.7 cm x 10.7 cm
Height43 mm
Length12.7 cm
Product dimension12.7 cm x 12.7 cm x 4.3 cm
Width12.7 cm
SALES PACKAGE (S)
Net contents1 N
FIXTURE DESIGN
MaterialPolycarbonate
Body colourWhite
DriverDOB
DiffuserOpal Diffuser
PERFORMANCE FEATURES
Colour Rendering Index (CRI)≥ 80
Colour Temperature3000 K Warm White
DimmableNon Dimmable
Life25000 hours
Light EffectWarm White
Lumen900 lm
Rated luminous flux (at 6500 K)100 lm / W
Start up timeInstant (less than 0.5 s)
SAFETY FEATURES
IP ratingIP20
UV\IR radiationNo UV\IR radiation
Voltage withstanding rangeOperating Voltage Range : 220 V - 240 V with 380 V Protection
In built surge protection3 kV
IsolationClass II (3.75 kV)
Mercury contentNo mercury
