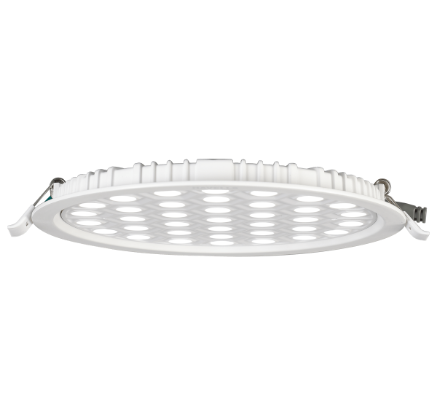

Havells , OCTANE GL <19 UGR LED PANEL 18 W RD 3 K/4 K/6.5 K Round Recess

SKU: HAW-LAM60

Recess Aluminum Die Cast Panel for Fall Ceilings Less the 19 UGR (Unified Glare Rating) panel, which unlikely to cause discomfort or harm to eyes 6500 K Cool Daylight Front honeycomb design for glare less light Fall Ceiling Across residential/ Offices/ Shops/ Hotels use, SS spring clips Housing Aluminum dis cast Imported by: Havells India Ltd

Old price: ₹ 2,400.00

Price: ₹ 1,146.90

TECHNICAL SPECIFICATION

BASIC DETAILS

Suitable for	Across Residential/ Offices/ Shops/ Hotels use
Mounting type	Fall Ceiling Mounted
Shape type	Round

POWER FEATURES

Wattage	18 W
Rated input voltage	230 V
Operating temperature	-10 °C to +45 °C
Power factor	≥ 0.95
Rated Input Current	0.090 A
Starting Voltage	140 V
THD	≤ 20

SALES PACKAGE (S)

Net contents	1 N

FIXTURE DESIGN

Material	Aluminum die cast
Body colour	White
Body Finish	Matt
Driver	Isolated Driver
Diffuser	Opal Diffuser

DIMENSIONS AND WEIGHT

Cut out dimensions	21.5 cm
Height	21 mm
Length	22.5 cm

PERFORMANCE FEATURES

Colour Rendering Index (CRI)	≥ 80
Colour Temperature	6500 K Cool Daylight
Dimmable	Non Dimmable
Life	25000 hours
Light Effect	Cool Daylight
Lumen	1440 lm
Rated luminous flux (at 6500 K)	80 lm / W
Start up time	Instant (less than 0.5 s)

SAFETY FEATURES

IP rating	IP20
UV\IR radiation	No UV\IR radiation
Voltage withstanding range	Operating Voltage Range : 140 V - 270 V with 380 V Protection
In built surge protection	3 kV
Isolation	Class I (1.5 kV)
Mercury content	No mercury
