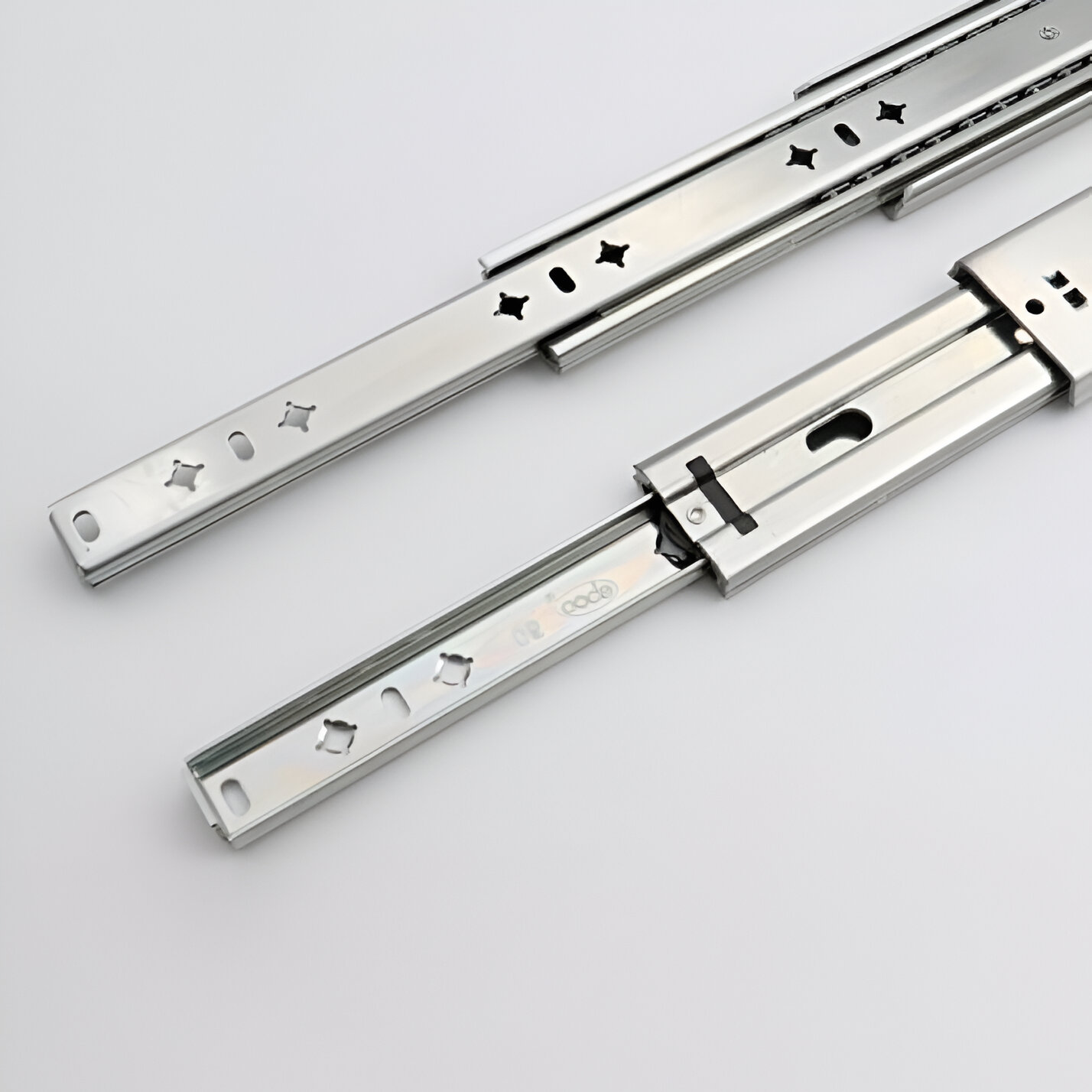

Ebco, HD90-75, Heavy Duty Drawer Slides - 90, Specialty Series, Drawer Slides and Hinges, Zinc Plated White- 750m/90Kgm

SKU: HD90-75
Manufacturer: EBCO
Heavy Duty Drawer Slides - 90 offer smooth, reliable movement for heavy loads up to 90 kg, ensuring durability and strength in demanding applications.
₹ 2,670.00

Product Description


Brand
Ebco
Condition
New
Model
Heavy Duty Drawer Slides - 90
Code
HD90-75
Length
750 mm
Max Load
90 Kgs
Finish
Zinc Plated White
Set/Pcs
Set of 2 Pcs.


Features:

  • Precision telescopic slides with full extension of drawer

  • Direct fitting from front

  • Removable drawer with Latch

  • Load Capacity: 90 Kgs





Fitting Instructions
  • To install sleek telescopic drawer slide 16mm gap per side is required between cabinet and drawer.
  • Depress latch and remove the inner slide.
  • Fit outer (fixed) slide onto the inside of the cabinet, access to holes can be got through slots in intermediate slide.
  • Slides should be fitted parallel and screws tightened fully to avoid gaps.
  • Fit inner slide on to the outside of the drawer.
  • Now slide the drawer with inner slide fitted on to the intermdediate slides on the cabinet till the latch engage automatically.

Caution- For efficiency and durability.
  • Strictly maintain 16mm side gap.
  • Fit slides parallel and at equal heights.
  • Do not apply paint or polish.
  • Do not let saw dust enter into the slides.
