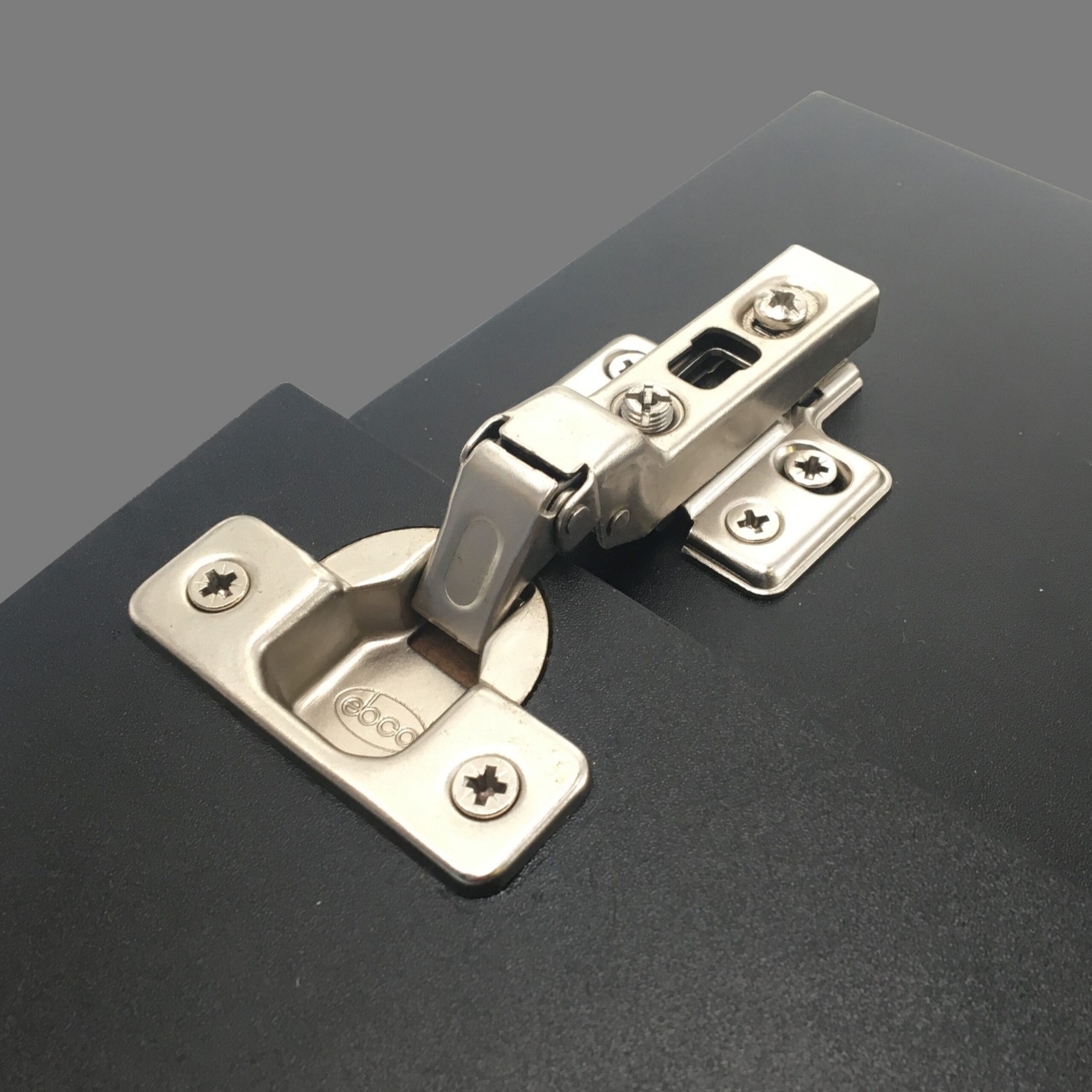

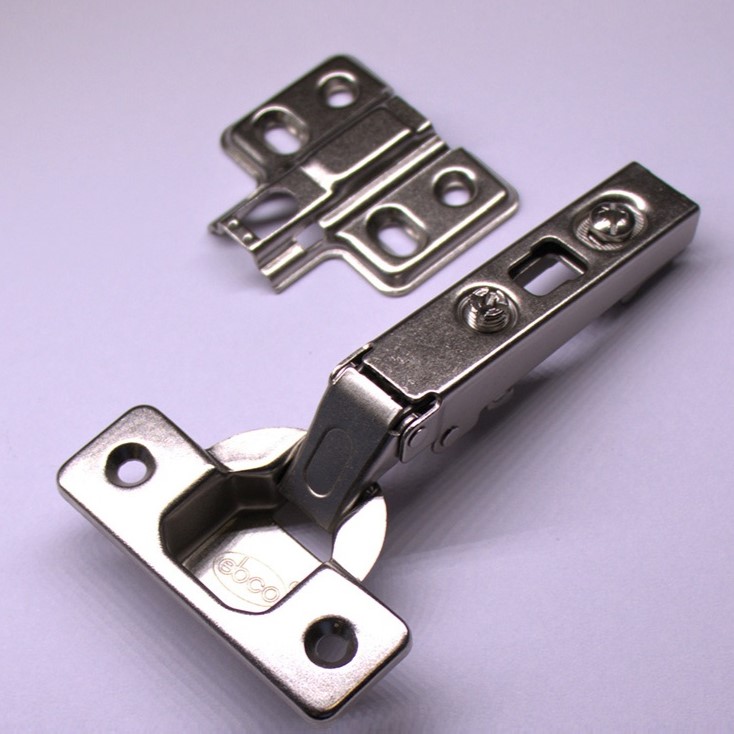

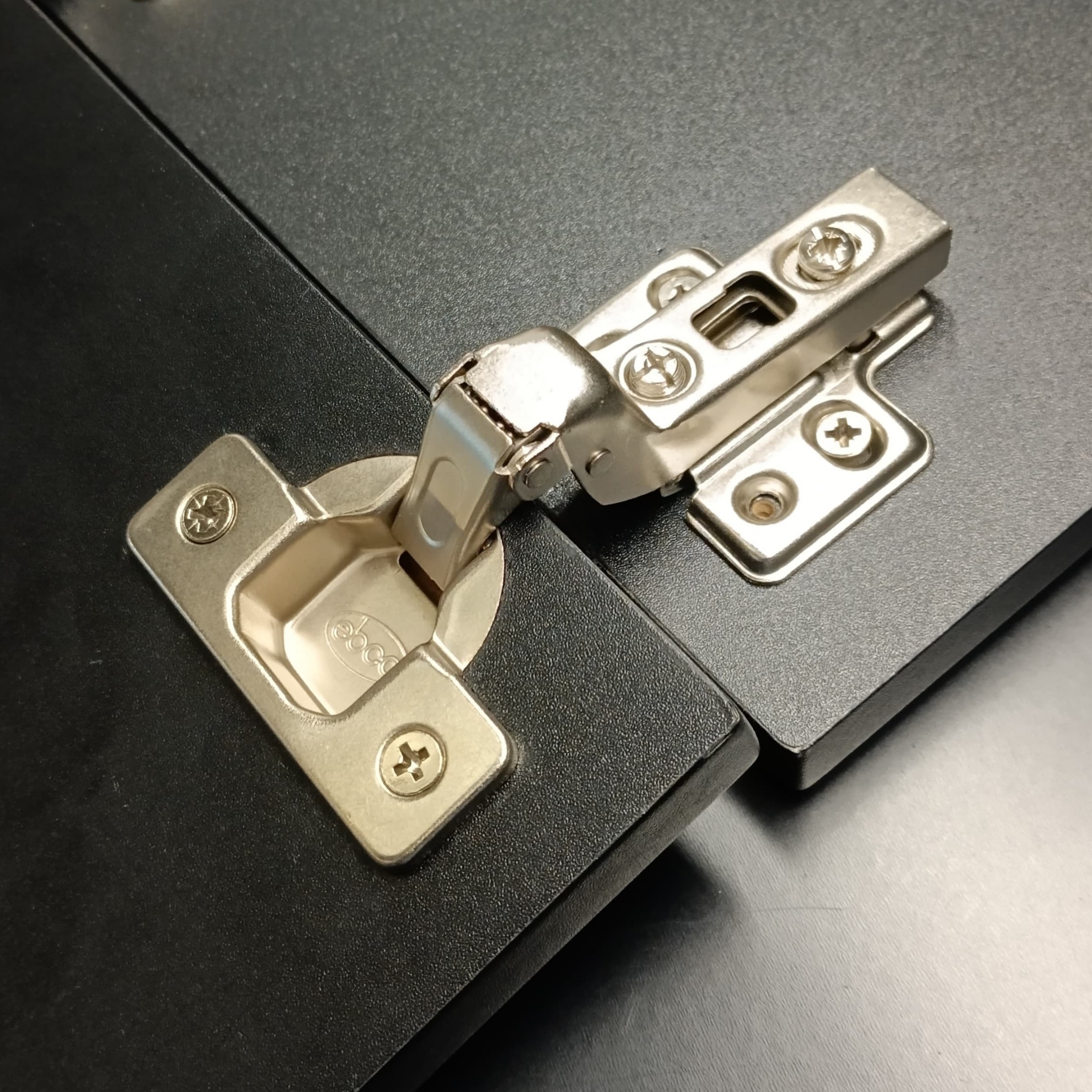

Ebco, HC1-I-M1, Click on Hinge (I) - 4 hole mounting plate (Overlay, Halfoverlay & Inset), Click on Hinge (I), Nickel Plated- 35mm

• Click on hinge full overlay, half overlay & inset with 4 hole mounting plate

• Unique Click on System enables easy installation of the shutter.

• Max. Shutter size: 34" x 22"(850mm x 550mm) for 2 hinges.

• Max. Opening: 105°.

• Shutter Thickness: 16mm to 19mm.

Caution- For efficiency and durabiliTY

• To avoid damage to hinge, do not force the door to exceed.
• Do not apply paint or polish.
• Hinges must be parallel.
• The hinge must not be hammered.
