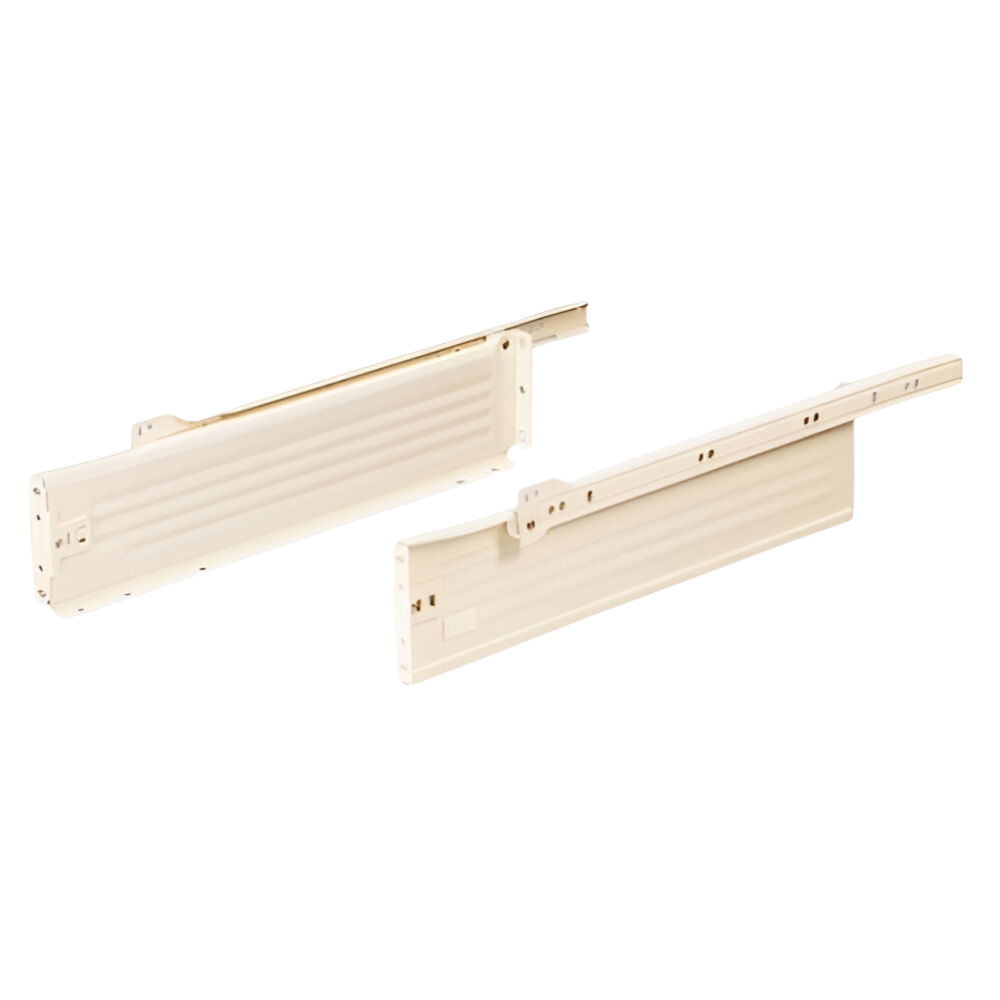

Ebco, FPDS86-40-6, Full Panel with 6mm Bottom Track (Ht.86mm), Drawer Slides and Hinges, Ivory - 400mm

SKU: FPDS86-40-6
Manufacturer: EBCO
The Full Panel with 6mm Bottom Track (Ht.86mm) is used to support and guide sliding doors or panels, ensuring smooth movement. The 6mm bottom track provides stability, while the 54mm height helps secure the panel in place.
₹ 424.00

Product Description


Brand
Ebco
Condition
New
Model
 Full Panel with 6mm Bottom Track  (Ht.86mm)
Code
FPDS86-40-6
Length
400 mm
Extension
325 mm
Gap and Side
15.5 mm
Max Load
25 Kgs
Finish
Ivory
Inner Packing Qty
25 sets


Features:
  • Smooth silent roller system with "Auto Closing" feature.
  • Right side pair has lateral guiding
  • Left side pair has side gap adjustment
  • Tilt and remove drawer
  • Stopper to prevent drawer from falling
  • "System 32" compatible
  • Ribs provided for strength

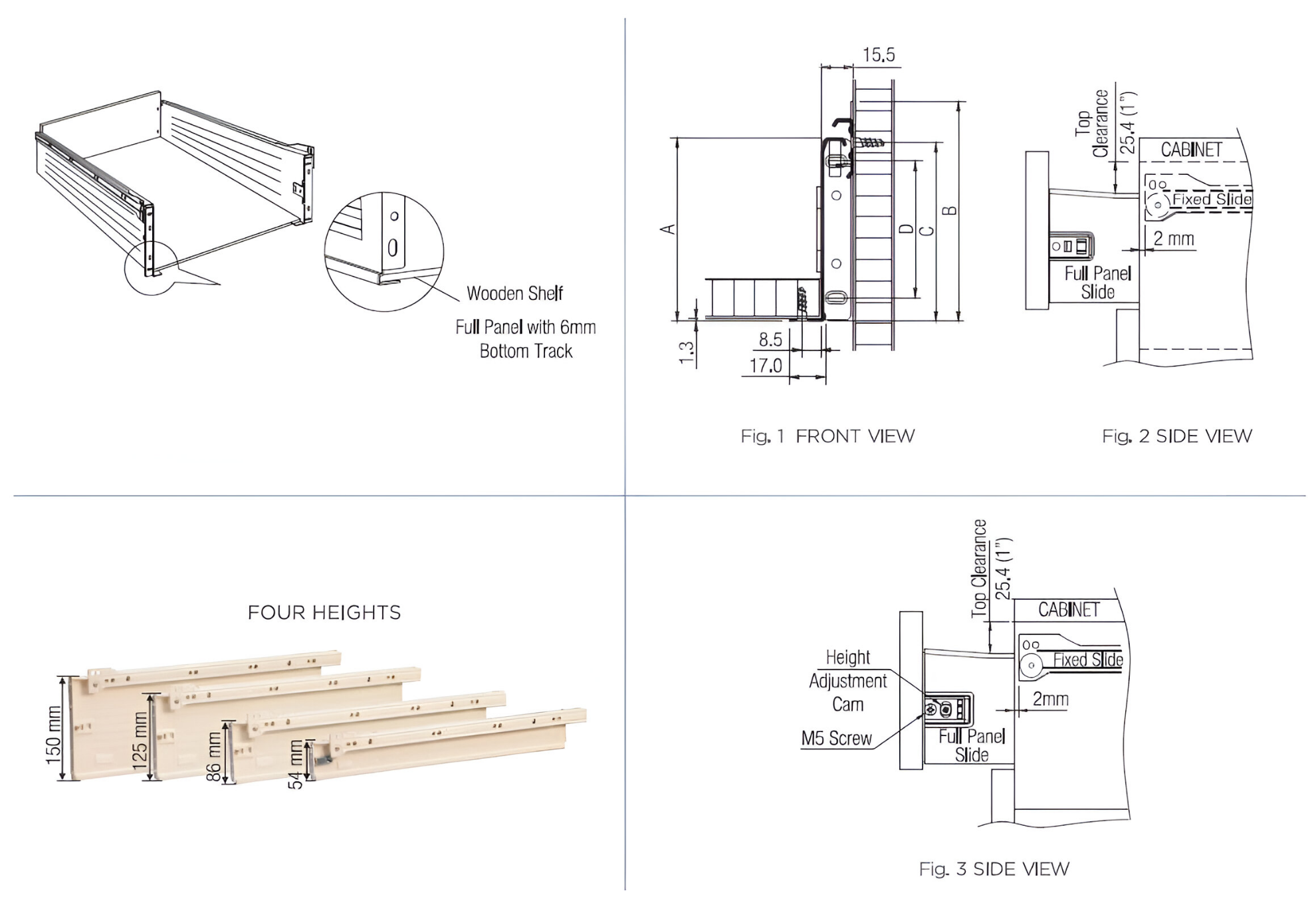

Fitting Instructions
  • Side gap of 15.5 mm per side is required and acts as side panel of drawer.
  • Clearance of 25.4 mm from top edge of drawer required to tilt and remove drawer.
  • Fixed slide should be set by 2mm for auto-closing.
  • Eccentric cam for front facia height adjustment provided in 86 mm and 125 mm height full panels with 6mm bottom track
  • Screws should be recessed to avoid fouling.
  • Fixed slides should be fitted parallel and at equal height to each other.
  • Front fascia is to be fitted into front brackets which have 2-way adjustment for alignment.

Caution- For efficiency and durability.
  • Strictly maintain side gap of 15.5 mm per side.
  • Fix slides parallel and at equal height.
  • Do not apply paint or polish.
