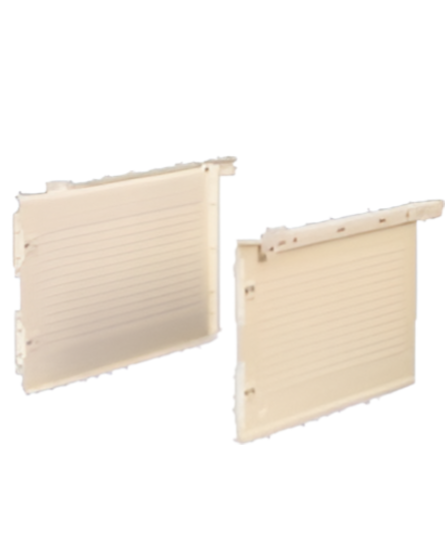

Ebco, FPDS150-45-6, Full Panel with 6mm Bottom Track (Ht.150mm), Drawer Slides and Hinges, Ivory - 450mm

Product Description

Brand	Ebco
Condition	New
Model	Full Panel with 6mm Bottom Track (Ht.150mm)
Code	FPDS150-45-6
Length	450 mm
Extension	375 mm
Gap and Side	15.5 mm
Max Load	25 Kgs
Finish	Ivory
Inner Packing Qty	25 sets

Features:

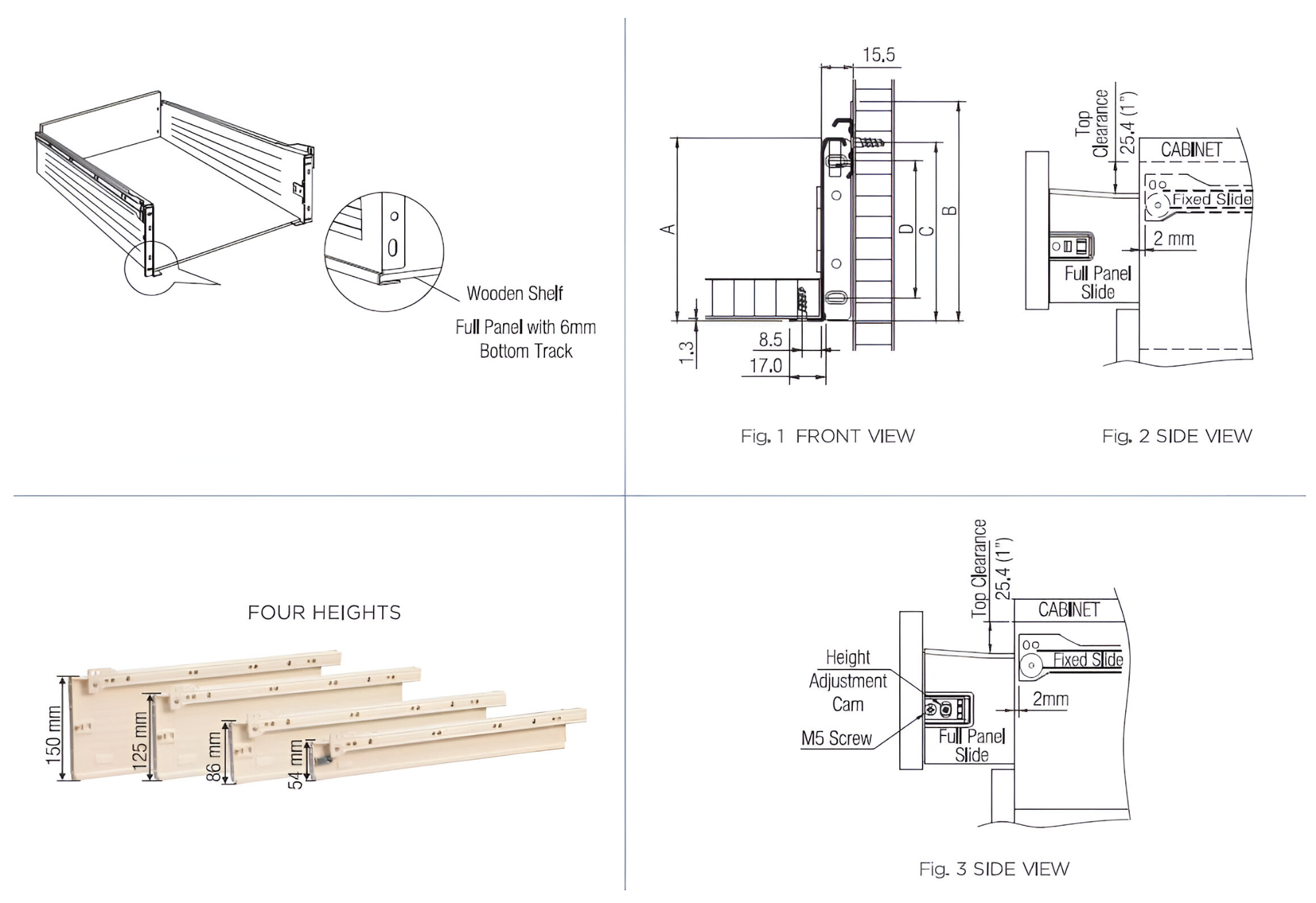

Fitting Instructions

Side gap of 15.5 mm per side is required and acts as side panel of drawer.
Clearance of 25.4 mm from top edge of drawer required to tilt and remove drawer.
Fixed slide should be set by 2mm for auto-closing.
Eccentric cam for front facia height adjustment provided in 86 mm and 125 mm height full panels with 6mm bottom track
Screws should be recessed to avoid fouling.
Fixed slides should be fitted parallel and at equal height to each other.
Front fascia is to be fitted into front brackets which have 2-way adjustment for alignment.

Caution- For efficiency and durability.
