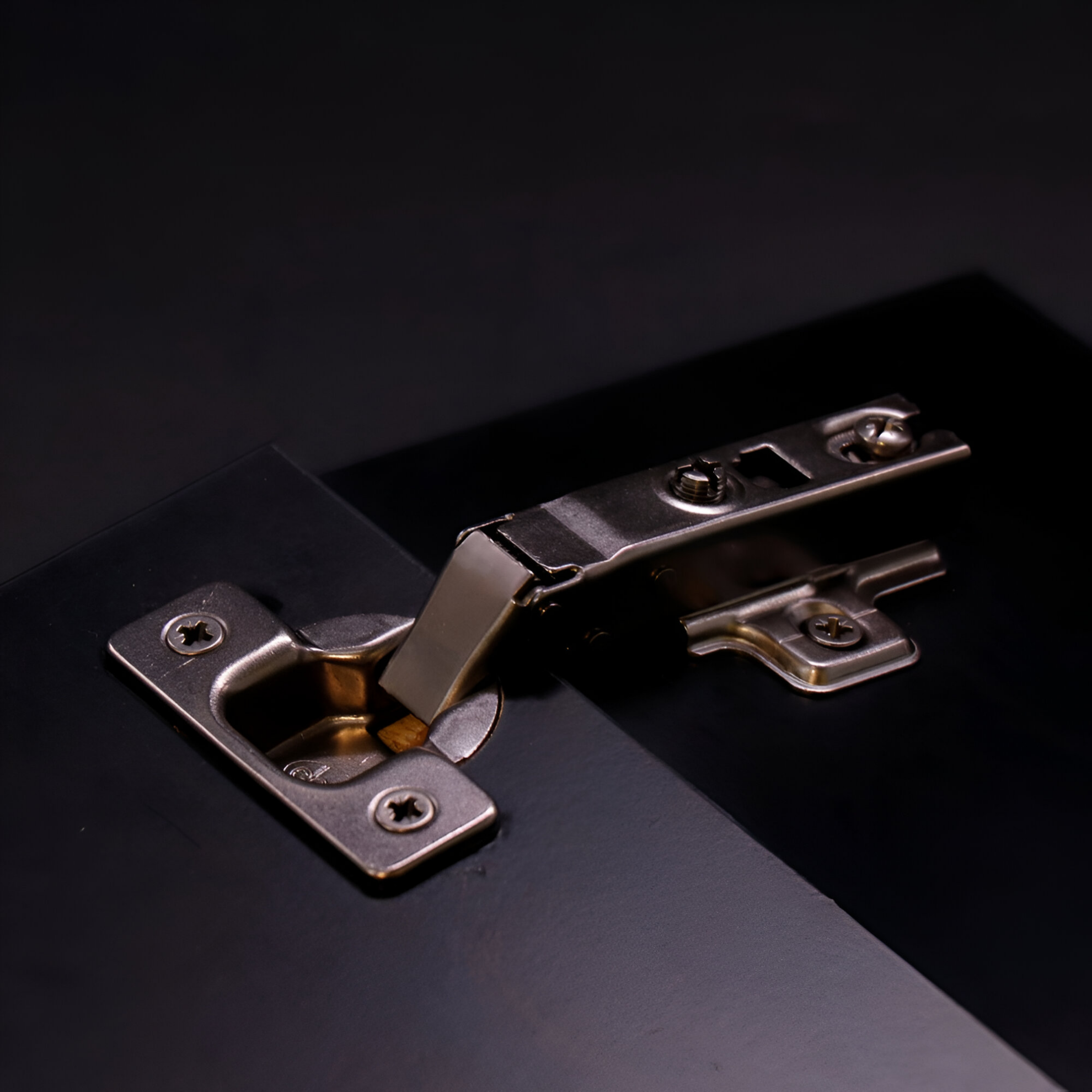

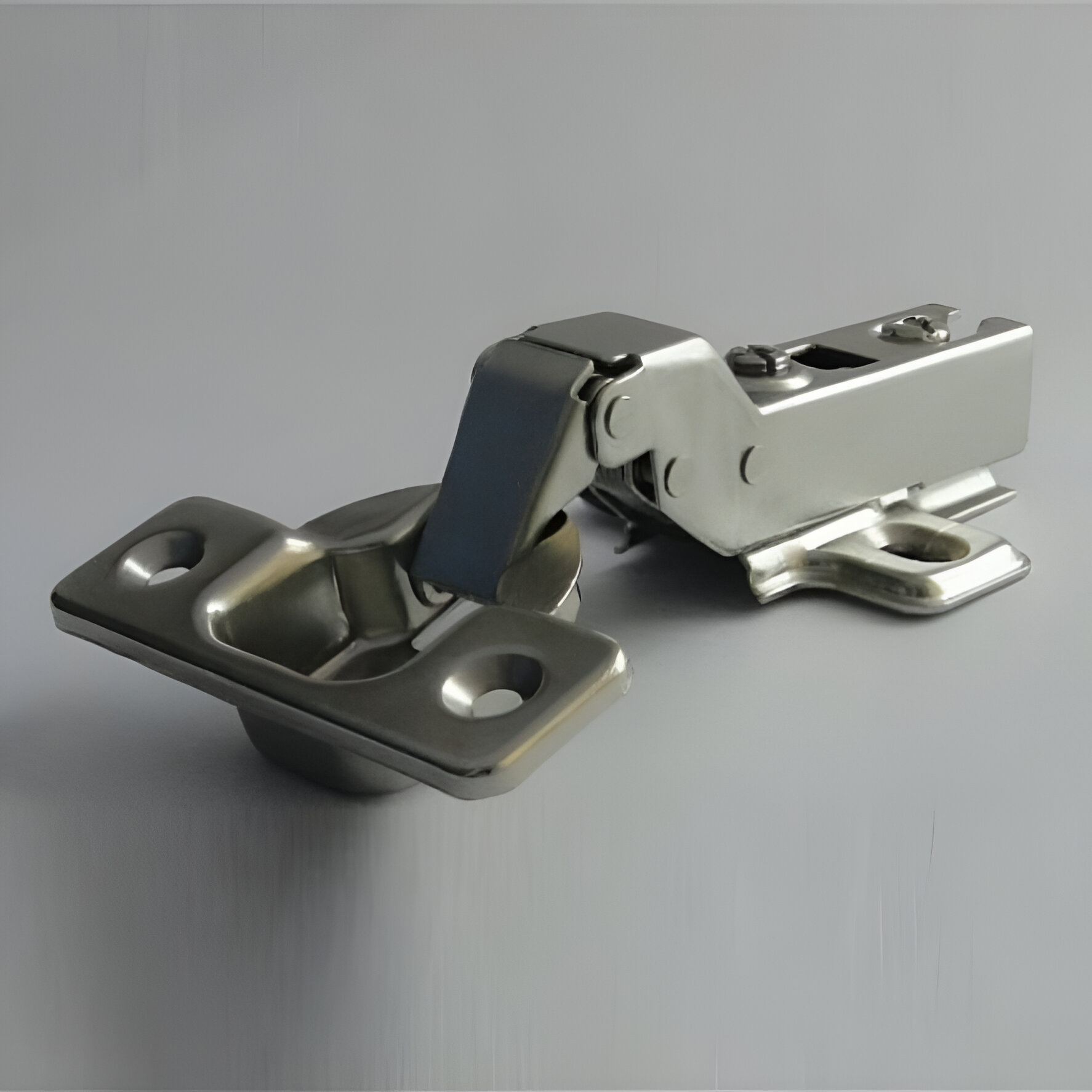

Ebco, E-HSM1, EURO - Slow Motion Hinge Half Overlay with 2 hole Mounting Plate, Soft Close / Push Open Series, Nickel Plated- 35mm

• Unique built in damping system allows the shutter to close in slow motion without banging.

• Available in Full overlay, Half overlay & Inset.

• Max opening 105°

• Max shutter size: 34" x 22" (850mm x 550mm) for 2 hinges.

• Shutter Thickness: 16mm to 19mm.

• Shutter cavity: Ø35mm, 12mm deep, cavity 4mm from edge.

Fitting Instructions

• Drill out the cavity in the shutter as per the dimensions. Use 'Ebco' Drilling jig. Do not chisel.
• Fit the cap into the shutter cavity and screw on the hinge at right angle to the edge of the shutter. The hinges must not be hammered.
• Mark hole in the cabinet for mounting plate  and screw on the mounting plate.
• Now, align the shutter with the cabinet, slip-on and screw the hinge on to the mounting plate. Any play or gap in cabinet can be adjusted in the bracket.
• By loosening the bracket screws, the shutter can slide horizontally and also be pivoted for varying pressure.

Caution- For efficiency and durabiliTY

• To avoid damage to hinge, do not force the door to exceed 105°.
• Do not apply paint or polish.
• Hinges must be parallel.
• The hinge must not be hammered.
