Ebco, E-HS1M230, Slip on Hinge - EURO with 4 Hole Mounting Plate - Overlay, Half Overlay - 30mm, Half Overlay & Inset, Primary Series, Hinges, Nickel Plated- 35mm

SKU: E-HS2M130

Manufacturer: EBCO

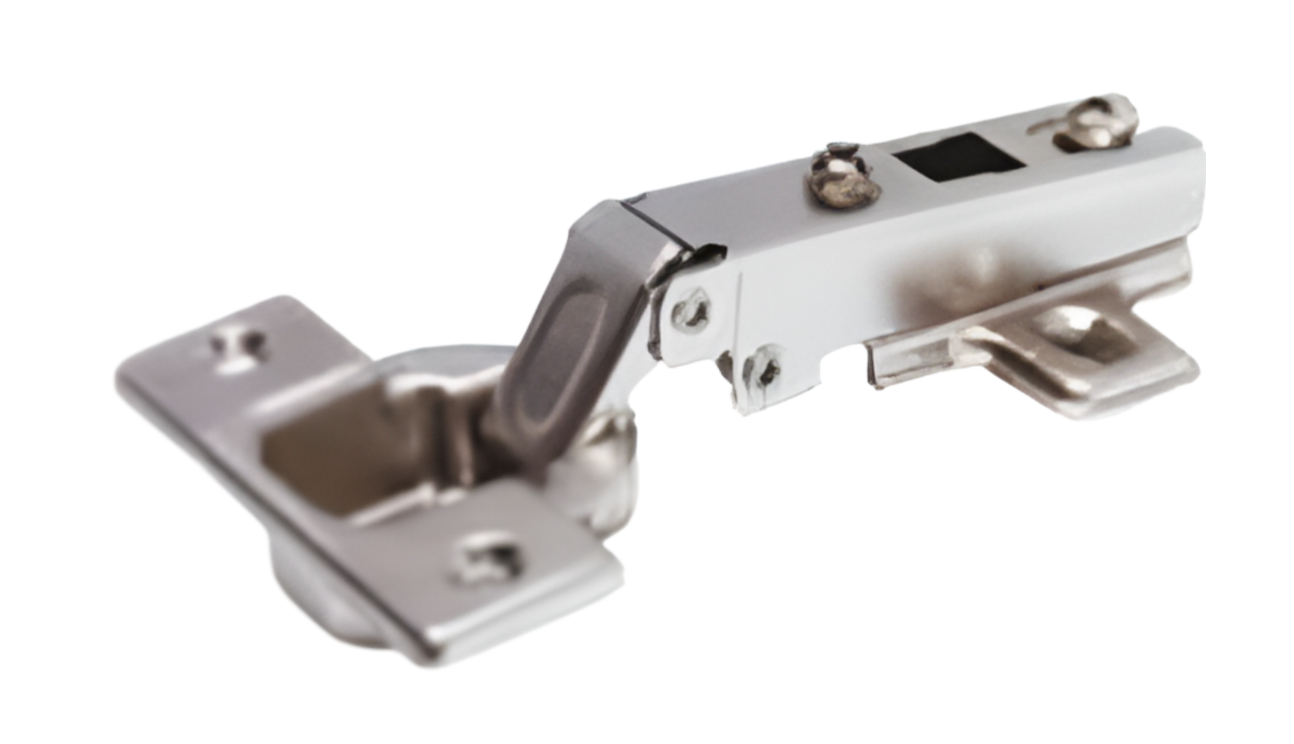

The Slip-on Hinge - EURO with 4 Hole Mounting Plate (Overlay, Half Overlay - 30mm) ensures easy installation and secure door mounting for overlay and half overlay applications, providing smooth operation and durability with a 30mm mounting depth.

₹ 108.00

Product Description

Brand	Ebco
Condition	New
Model	Slip on Hinge - EURO with 4 Hole Mounting Plate - Overlay, Half Overlay - 30mm
Code	E-HS2M130
Length	35mm
Max Load	13 Kgs
Finish	Nickel Plated
Set/Pcs	Set of 2 Pcs
SPU	100

Features:

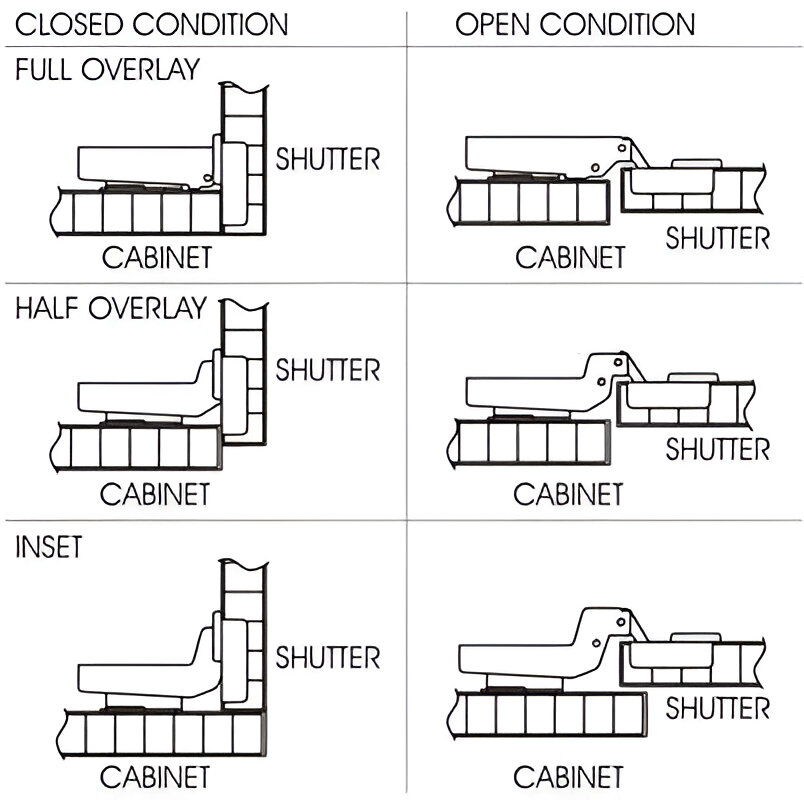

Available in Full overlay, Half overlay and Inset.
Max. opening - 105 °
Max. shutter size - 34" x 22" (850 mm x 550 mm) for 2 hinges.
Shutter Thickness - 16 to 19 mm
Shutter cavity Ø35 mm; 12 mm deep. cavity 4 mm from edge.
Finish - Nickel Plated.
Cap to cover the Ø35mm drilling made for maxi connectors, hinges, etc.
Easy to fit & remove and also reusable.
Caution- For efficiency and durability.
Fit slides parallel and at equal heights.
Do not apply paint or polish.
Do not let saw dust enter into the slides.
