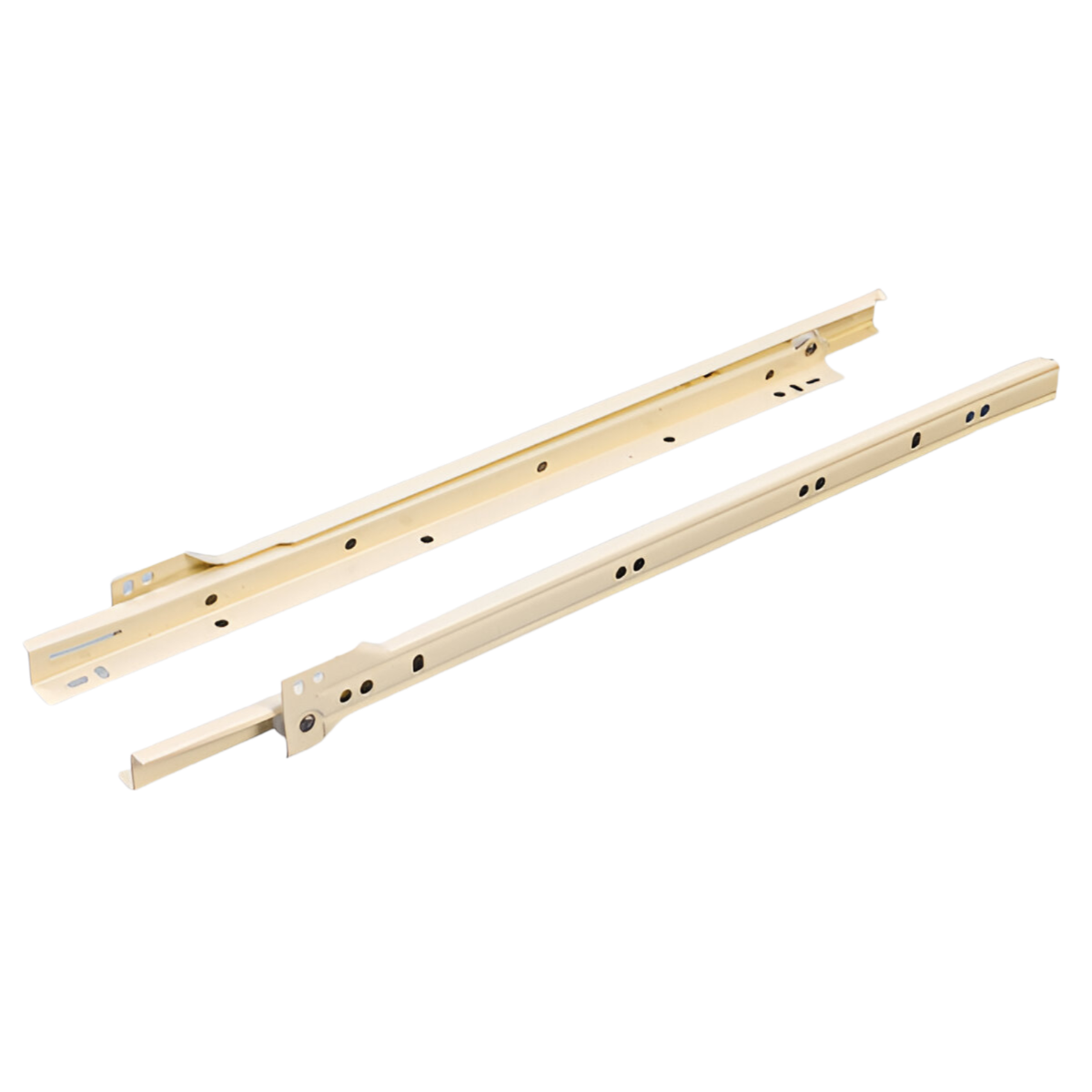

Ebco, BMDS35, Bottom Mounting Drawer Slides and Hinges, Ivory - 350mm

SKU: BMDS35

Manufacturer: EBCO

Bottom Mounting Drawer Slides: These slides are installed at the bottom of drawers to ensure smooth and stable sliding motion.

₹ 194.00

Product Description

Brand	Ebco
Condition	New
Inner Packing Weight	6.840 Kgs
Outer Packing Qty	60 sets
Outer Packing Weight	28.090 Kgs
Model	Bottom Mounting Drawer Slides
Code	BMDS 35
Length	350 mm
Extension	275 mm
Gap and Side	12.7 mm (1/2")
Max Load	20 Kgs
Finish	Ivory
Inner Packing Qty	15 sets

Features:

Smooth silent roller system with "Auto Closing" feature.
Right side pair has lateral guiding
Left side pair has side gap adjustment
Tilt and remove drawer
Stopper to prevent drawer from falling
"System 32" compatible
Ribs provided for strength

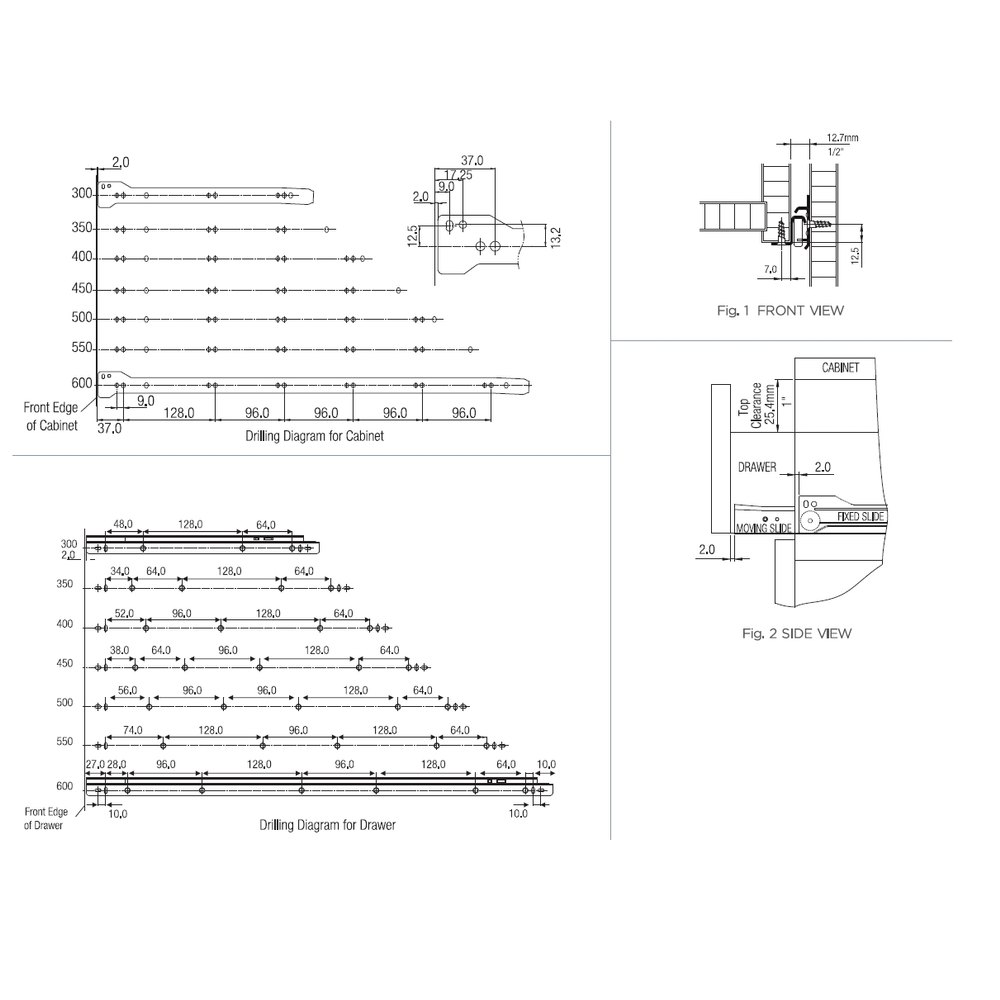

Fitting Instructions

Side gap of 12.7 mm (1/2") per side required.
25.4 mm (1") clearance from top edge of drawer required to tilt and remove drawer.
Fixed and moving slide should be equally offset by 2 mm for Auto-Closing.
Recess screw heads to avoid interference.
A set of slides must be fitted parallel and at same heights to each other.

Caution- For efficiency and durability.

Side gap of 12.7 mm (1/ 2") per side is most important.
Fix slides parallel and at equal height.
Do not apply paint or polish.
