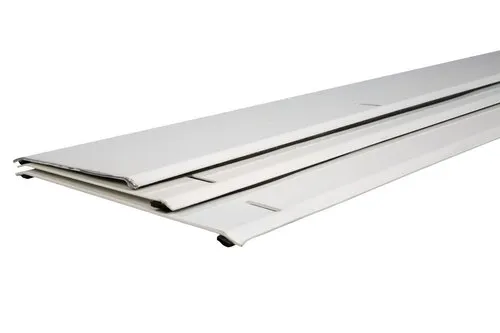

Aluminum Expansion Joint Plate -300mm-2mm Thick

Product Specifications

Usage/Application: Construction

Material: Aluminum

Size: 300 mm (2mm Thick)

HSN CODE: 7308

Unit: RMT

Ready Made Lintel: Aluminum Expansion Joint Plate made out of Aluminum, perforated as per Arpitha

Uses/Application: Industrial

Country of Origin: Made in India

Purpose

Arpitha aluminum expansion joints are used for gaps between floors and walls, as well as wall corners.
They have a durable aluminum base and cover to prevent leaks through the joints.

Advantages

Enhances aesthetics
Covers uneven plastering.
Easy to install.

Availability & Specification

Powder Coated Expansion Joint Profile made of Aluminum Profile Thickness of 2mm /2.5mm / 3mm.
Powder coated aluminum suitable for wall expansion gap of 25mm / 50mm / 75mm / 100mm.
Powder coated 1100 grade for expansion joint widths of 50mm, 150mm and 200mm and in different colors.
Note:-Minimum Recommended with powder coating for ceiling & column

For Wall Expansion Joint

Clean Surface: Clean the wall on both sides of the expansion joint gap for 4 inches (100 mm).

Smooth Finish: Grind uneven areas for a smooth finish and remove dust with an air blower.

Apply Adhesive: Use polymer-based adhesive from Arpitha Exports on the cleaned surface.

Affix Waterproof Sheet: Press the PVC waterproof sheet firmly onto the adhesive, ensuring no air pockets.

Install Plaster Stop Bead: Place Arpitha galvanized iron plaster stop bead along the edges of the gap, with folds facing each other. Nail it to the wall.

Add Plaster Mesh: Spread 6 inches (150 mm) Arpitha Plaster Mesh over the stop bead on both sides and nail it to the wall.

Apply Cement Mortar: Cover with a thin coat of cement mortar and allow curing for 1-2 days.

Install PVC Profile: Slide the PVC profile onto the stop bead on both sides, bridging the gap.

Finish Installation: Apply cement mortar to level the PVC profile on both sides.

For Powder Coated Aluminum

Clean Surface: Clean the wall on both sides of the expansion joint gap for 25 mm.

Smooth Finish: Grind uneven areas for a smooth finish and remove dust with an air blower.

Apply Adhesive: Use a 3:1 mixture of Mapei Adhesilex PG4 parts A and B on both sides of the gap.

Install Water Barrier: Fix the 100-mm-wide waterproof PVC-coated fabric water barrier on the cleaned surface, pressing firmly to avoid air pockets.

Install Aluminum Profile: Fix the 125 mm wide powder-coated aluminum profile (1.5 mm thick, 2.5 meters long) over the water barrier using gaskets and suitable screws.
