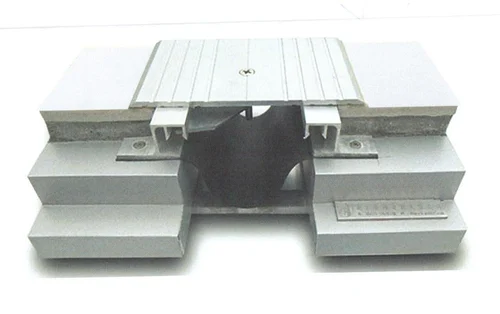

Aluminium Expansion Joints, Horizontal 100mm

SKU: AEHZ-7610-100mm

Manufacturer: Arpitha Exports

Aluminium Expansion Joints System designed for floor, wall and roof expansion joint applications, which helps in avoiding leakages through the expansion joints, Corrosion Resistance.

₹ 6,000.00

Product Specifications

Usage/Application: Construction

Material: Aluminium

Size: Horizontal 100mm

HSN CODE: 7610

Unit: RMT

Ready Made Lintel: Aluminium Expansion Joints made out of Aluminium, perforated as per Arpitha

Uses/Application: Industrial

Country of Origin: Made in India

Advantages

It’s aluminium alloy allowing plus and minus 50-100% thermal movement in nominal expansion joint gaps up of 25-250mm.
It has internal moisture barrier that can be directed to drains or exterior wall covers to evacuate water.

Specification

Size: Horizontal 100mm

Thread Size: 25 mm to 50 mm gap

Installation Process

Clean Up: Remove garbage and check if the gap in the concrete structure is straight and even.
Leveling: Use high-strength cement mortar to level the area; the width should be more than 150 mm.
Install Water Barrier:
- Ensure the water barrier doesn’t cover the snapped ink line.
- Apply special glue on the screed coat and the bottom of the water barrier.
- After the glue is nearly dry, place the water barrier on the screed coat.
Install Aluminium Base:
- Nail the screws to keep the base straight; misalignment can occur if the centering bar bolt is screwed down.
- Ensure the decorative level matches the height of the aluminium base.
- Fill gaps with sealant to prevent leaks.
Install Centering Bar:
- Lean the centering bar at a 45-degree angle to the aluminium base.
- Use screw holes on the aluminium plate to confirm the centering bar's location.
- Mark on the decorative level, place the centering bar, and secure it with screws from one side to the other.
Finish Installation: Tighten the screws on the plate to complete the installation.
