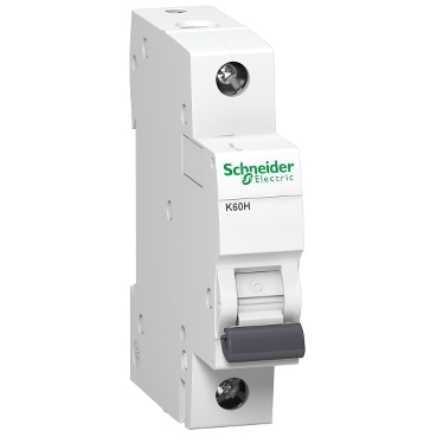

Schneider Electric Pack of 12 MCB K60H 1P 63A C 10kA K60H 1P - 63 A - C curve 10 kA - set of 12 SKU - AECMCB-A9KF71163BQ
* 10kA Breaking capacity conforming to IEC/EN 60898-1 *Suitable for isolation, guarantees operational safety at the downstream *Enhanced safety during short-circuits with energy limiting class 3 * No accidental contact with live parts, thanks to finger-proof IP 20 terminals.
Old price: ₹ 5,976.00
₹ 5,677.20
This Acti9 K60H product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 63A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 240/415VAC conforming to EN 60898-1 standard and at conforming to standard. This product is compliant with EN/IEC 60898-1 standard. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The connection can be made downstream by biconnect comb busbar. It can be also made upstream/downstream by tunnel terminals. A padlock device is available for work to be carried out on live parts. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 81mm x (D) 70mm. The weight is 0.12kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 55°C. The storage temperature is -25°C to 85°C.
