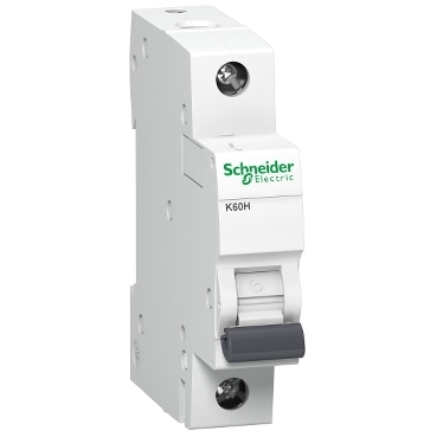

Picture of Acti 9 K60H 1P - 1 A - C curve 10 kA - set of 12
  • Product Details
  • Specifications
Be the first to review this product

Acti 9 K60H 1P - 1 A - C curve 10 kA - set of 12

SKU: A9KF71101BQ
Schneider Electric Acti 9 K60H 1P - 1 A - C curve 10 kA - set of 12 A9KF71101BQ
Old price: ₹ 309.99
₹ 303.92
Device applicationDistribution
RangeActi9
Product nameActi9 K60
Product or component typeMiniature circuit-breaker
Device short nameK60H
Poles description1P
Number of protected poles1
[In] rated current1 A
Network typeAC
Trip unit technologyThermal-magnetic
Curve codeC
Breaking capacity10000 A Icn at 240/415 V AC 50/60 Hz conforming to EN 60898-1
10000 A Icn at 240/415 V AC 50/60 Hz conforming to IEC 60898-1
Suitability for isolationYes
StandardsEN 60898-1
IEC 60898-1
product certificationsISI
Complementary
Network frequency50/60 Hz
Magnetic tripping limit5...10 x In
[Ics] rated service breaking capacity10 kA 75 % conforming to EN 60898-1 - 240/415 V AC 50/60 Hz
10 kA 75 % conforming to IEC 60898-1 - 240/415 V AC 50/60 Hz
Limitation class3 conforming to EN 60898-1
[Ui] rated insulation voltage500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage4 kV
Contact position indicatorNo
control typeToggle
local signallingWithout
Mounting modeFixed
mounting supportDIN rail
Comb busbar and distribution block compatibilityDownstream: biconnect
9 mm pitches2
height81 mm
Width18 mm
Depth70 mm
Net weight0.12 kg
Quantity per setSet of 12
ColourWhite
Mechanical durability20000 cycles
Electrical durability20000 cycles
Connections - terminalsTunnel type terminals (downstream) 1…25 mm² rigid
Tunnel type terminals (upstream) 1…25 mm² rigid
Tunnel type terminals (downstream) 1…16 mm² flexible
Tunnel type terminals (upstream) 1…16 mm² flexible
Wire stripping length14 mm for top or bottom connection
Tightening torque2 N.m top or bottom
earth-leakage protectionWithout
Environment
IP degree of protectionIP20 conforming to IEC 60529
Pollution degree2 conforming to IEC 60898-1
2 conforming to EN 60898-1
Overvoltage categoryII
Tropicalisation2 conforming to IEC 60068-1
Relative humidity95 % at 55 °C
Operating altitude0...2000 m
ambient air temperature for operation-5…55 °C
Ambient air temperature for storage-25…85 °C
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height7 cm
Package 1 Width2 cm
Package 1 Length8 cm
Package 1 Weight1.383 kg
Picture of Acti 9 K60H 1P - 1 A - C curve 10 kA - set of 12
Old price: ₹ 309.99
₹ 303.92
